Brand: Panduit
|
SKU:
10044816

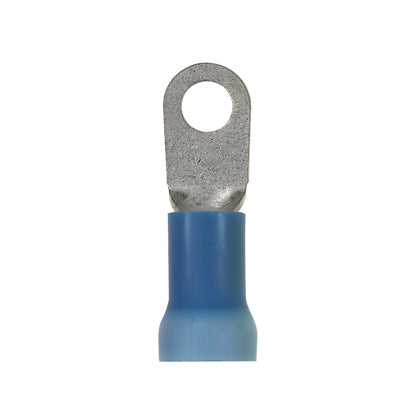

Panduit PV6-10RX-X | Loose Piece Ring Terminal | UPC - 07498312455
Regular price
$44.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-10RX-X | Loose Piece Ring Terminal | UPC - 07498312455
Regular price
$44.44
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 6 AWG Conductor, #10 Stud, 1.61 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.47 in W x 0.045 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV6-10RX-X | Loose Piece Ring Terminal | UPC - 07498312455 Key Specs
| Note | PV6-10RX-X replaces PV6-10RX-E |
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | 40.9 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG SOL) | #6 |
| Minimum Copper Conductor Size (AWG STR) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.43 |
| Wire Strip Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV6-10RX-X | Loose Piece Ring Terminal | UPC - 07498312455 Environmental Information
| Panduit's RoHS Statement | Download and View |
