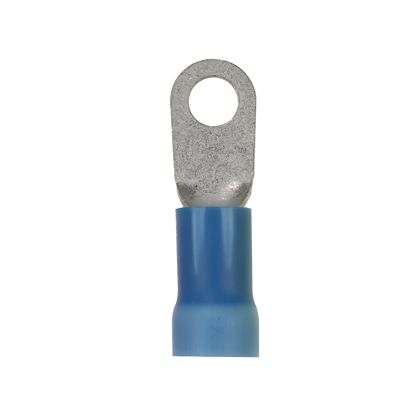

Panduit PV6-14R-T | Pan-Term Ring Terminal, Blue, Vinyl, 6 AWG, 1/4" Stud, PK200
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-14R-T | Pan-Term Ring Terminal, Blue, Vinyl, 6 AWG, 1/4...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 6 AWG, 1/4" stud size, vinyl insulated, bulk package, bulk package.
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.65 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.48 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV6-14R-T - Features
- Terminals are self-insulated with a PVC (Vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion resistance
- On Mylar tape
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV6-14R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV6-14R-T |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | 6 |
| Minimum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.69 |
| Barrel Length (mm) | 17.5 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.34 |
| UPC | 07498387121 |
Panduit - PV6-14R-T - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
