Brand: Panduit
|
SKU:
898108

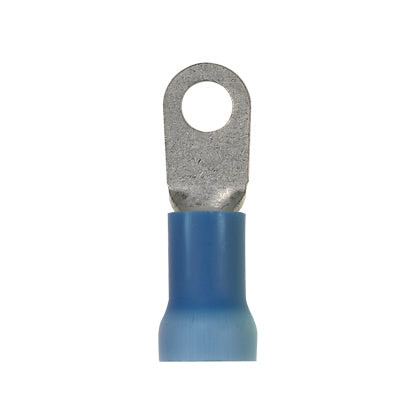

Panduit PV6-14RX-X | Loose Piece Ring Terminal | UPC - 07498312445
Regular price
$41.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-14RX-X | Loose Piece Ring Terminal | UPC - 07498312445
Regular price
$41.77
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.61 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.47 in W x 0.045 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV6-14RX-X Key Specs
| Note | PV6-14RX-X replaces PV6-14RX-E |
| Stud Hole Size (In.) | 1/4 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.44 |
| Maximum Wire Insulation Diameter (mm) | 11.1 |
| Seam Type | Brazed |
Panduit PV6-14RX-X Data Sheets
| Part Drawings | Crimp Tool - 00084SLF_DC/00 | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
| Articles | BlackFin PR | Download and View |
