Brand: Panduit
|
SKU:
10044821

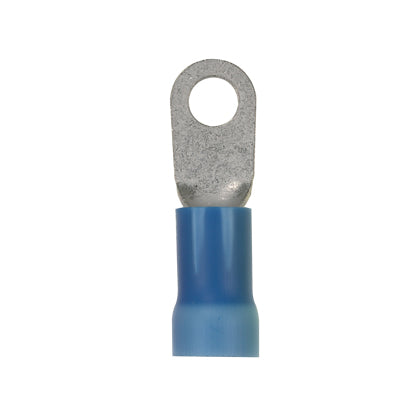

Panduit PV6-38R-T | Loose Piece Ring Terminal | UPC - 07498387123
Regular price
$324.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-38R-T | Loose Piece Ring Terminal | UPC - 07498387123
Regular price
$324.91
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 6 AWG Conductor, 3/8 in Stud, 1.74 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.62 in W x 0.05 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.51 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Terminals are self-insulated with a PVC (Vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion resistance
- On Mylar tape
Panduit Panduit PV6-38R-T | Loose Piece Ring Terminal | UPC - 07498387123 Key Specs
| Stud Hole Size (In.) | 2/5 |
| Stud Hole Size (mm) | 10.1 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG SOL) | #6 |
| Minimum Copper Conductor Size (AWG STR) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.43 |
| Wire Strip Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit Panduit PV6-38R-T | Loose Piece Ring Terminal | UPC - 07498387123 Environmental Information
| Panduit's RoHS Statement | Download and View |
