Panduit PV6-56R-X | Pan-Term PV6-56R-X Loose Piece Ring Terminal
Regular price
$39.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-56R-X | Pan-Term PV6-56R-X Loose Piece Ring Terminal
Regular price
$39.29
Unit price
Description
Description

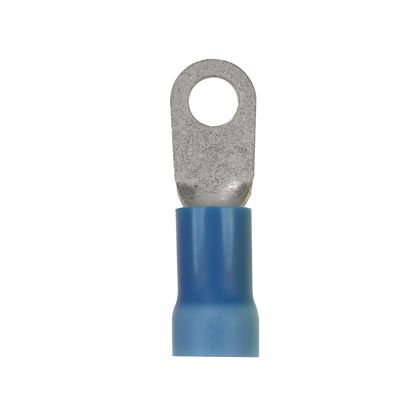

Panduit PV6-56R-X | Pan-Term PV6-56R-X Loose Piece Ring Terminal
Ring Terminal, large wire, 6 AWG, 5/16" stud size, vinyl insulated, standard package.
Specifications
Specifications
Panduit - PV6-56R-X - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV6-56R-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV6-56R-X |
| Item Description | Pan-Term PV6-56R-X Loose Piece Ring Terminal |
| Stud Hole Size (In.) | 5/16" |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.72 |
| Barrel Length (mm) | 18.2 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.34 |
| Insulation Diameter (mm) | 8.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.34 |
| Maximum Wire Insulation Diameter (mm) | 8.6 |
| Outer Diameter (In.) | 0.34 |
| Outer Diameter (mm) | 8.6 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.74 |
| Overall Length (mm) | 44.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Tongue Length (In.) | 1.02 |
| Tongue Length (mm) | 25.9 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.1 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV6) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
