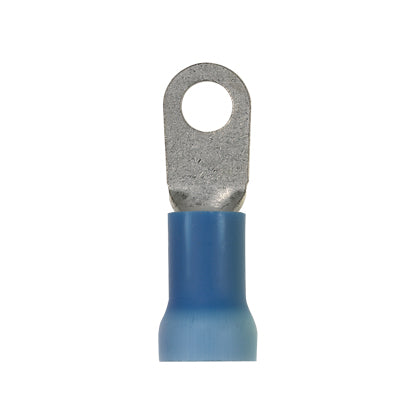

Panduit PV6-56RX-T | Loose Piece Ring Terminal | UPC - 07498387016
Regular price
$372.54
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 6 AWG Conductor, 5/16 in Stud, 1.73 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.62 in W x 0.045 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.51 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV6-56RX-T | Loose Piece Ring Terminal | UPC - 07498387016 Key Specs
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG SOL) | #6 |
| Minimum Copper Conductor Size (AWG STR) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.43 |
| Wire Strip Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit Panduit PV6-56RX-T | Loose Piece Ring Terminal | UPC - 07498387016 Environmental Information
| Panduit's RoHS Statement | Download and View |
