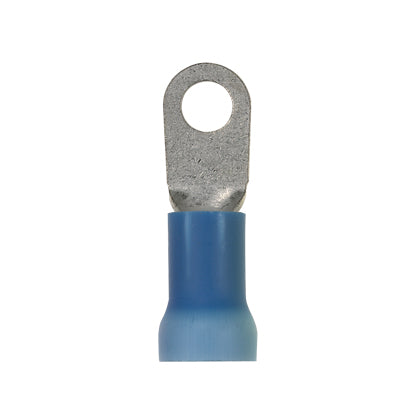

Panduit PV6-8RX-E | Loose Piece Ring Terminal | UPC - 07498387007
Regular price
$84.42
Unit price
Brand: Panduit
|
SKU:
10044828
Regular price
$84.42
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 6 AWG Conductor, #8 Stud, 1.61 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.47 in W x 0.045 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PV6-8RX-E | Loose Piece Ring Terminal | UPC - 07498387007 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG SOL) | #6 |
| Minimum Copper Conductor Size (AWG STR) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.43 |
| Wire Strip Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit Panduit PV6-8RX-E | Loose Piece Ring Terminal | UPC - 07498387007 Environmental Information
| Panduit's RoHS Statement | Download and View |
