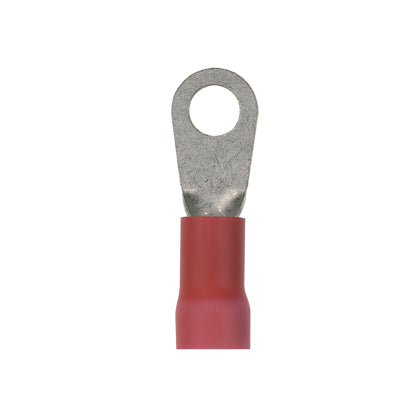

Panduit PV8-10R-QY | Pan-Term Ring Terminal, Red, Vinyl, 8 AWG, #10 Stud, PK25

Panduit - PV8-10R-QY - Features

• Nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
• Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
• Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
• Nylon insulation is locked in place insulation will not move or twist Off and offers high dielectric strength and stability in demanding oily environmental conditions
• Electro-tin plated provides long-lasting corrosion resistance, straight tongue angle
• For high vibration applications encountered in aircraft and aboard ships, motor lead applications in hospitals, industrials and generating plants
• Deep V groove serrations in the inner barrel: provides added holding strength and better conductivity
• Industrials and generating plants
• The nylon insulated seamless
• Electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
• The terminal is rated 105 deg C and meets SAE-AS7928 requirements
• Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
• Low resistance with no seams to split plus ductility for excellent crimp forming properties
• Electro-tin plated provides durable long-lasting corrosion resistance
• Nylon insulation is locked in place insulation will not move or twist off
• High dielectric strength and stability in demanding oily environmental conditions
• Commercial/military stranded copper conductor
• Pure electrolytic copper
• Insulation support helps to prevent wire damage in bending applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL and CSA rated up to 600 V per UL 486
