Brand: Panduit
|
SKU:
4060389-JBT

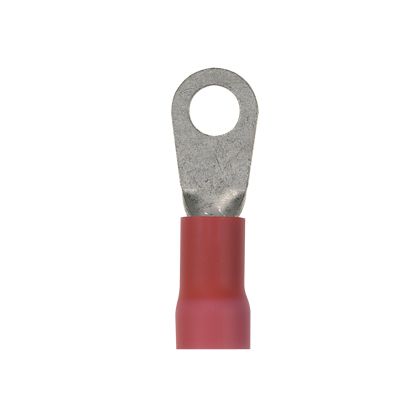

Panduit PV8-10R-TY | Pan-Term PV8-10R-TY Ring Terminal, Red, Vinyl, 8 AWG, #10 Stud, PK200
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV8-10R-TY | Pan-Term PV8-10R-TY Ring Terminal, Red, Vinyl,...
Regular price
$1.47
Unit price
Description
Description
Panduit PV8-10R-TY | Pan-Term PV8-10R-TY Ring Terminal, Red, Vinyl, 8 AWG, #10 Stud, PK200
The PV8-10R-TY Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
Panduit - PV8-10R-TY - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV8-10R-TY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV8-10R-TY |
| Item Description | Pan-Term PV8-10R-TY Ring Terminal, Red, Vinyl, 8 AWG, #10 Stud, PK200 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.28 |
| Maximum Wire Insulation Diameter (mm) | 7.1 |
| Seam Type | Brazed |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.53 |
| Overall Length (mm) | 38.9 |
| Overall Width (In.) | 0.47 |
| Overall Width (mm) | 11.9 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.47 |
| Tongue Width (mm) | 11.9 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-720 (CD-720PV8-2); CT-2600/L (CD-2600-PV8) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - PV8-10R-TY - Package Information
| UPC | 07498342117 |
|---|---|
| Standard Package Quantity | 200 |
| Standard Package Volume (cf) | 0.0482 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - PV8-10R-TY - Videos
| Video URL 1 | Click to View |
|---|
