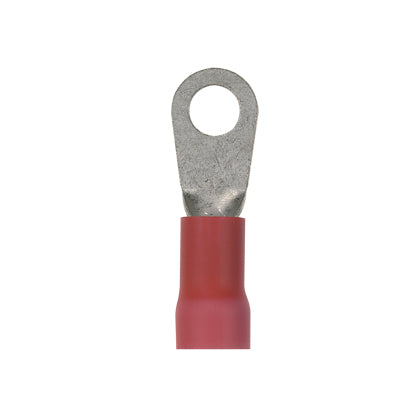

Panduit PV8-10R-TY | Pan-Term Ring Terminal, Red, Vinyl, 8 AWG, #10 Stud, PK200
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV8-10R-TY | Pan-Term Ring Terminal, Red, Vinyl, 8 AWG, #10...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 8 AWG, #10 stud size, vinyl insulated.
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 8 AWG Conductor, #10 Stud, 1.53 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV8-10R-TY - Features
- Nylon insulation INSULUG type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics
- Cable support and strain relief
- Multi-finger insulation grip provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Deep V groove
- Inner barrel serrations provide optimum conductivity
- For use on 600 V maximum, 105 deg C maximum operating temperature
- Pure electrolytic copper
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV8-10R-TY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV8-10R-TY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | 8 |
| Minimum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.28 |
| UPC | 07498342117 |
