Brand: Panduit
|
SKU:
10044830

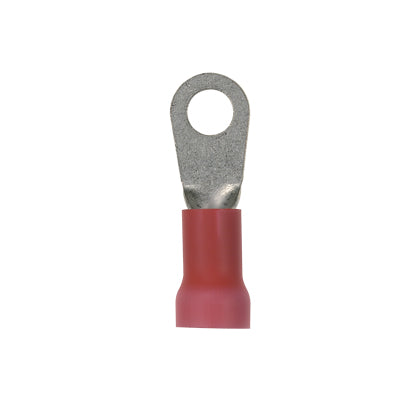

Panduit PV8-14RX-QY | Loose Piece Ring Terminal | UPC - 07498369508
Regular price
$86.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV8-14RX-QY | Loose Piece Ring Terminal | UPC - 07498369508
Regular price
$86.15
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 8 AWG Conductor, 1/4 in Stud, 1.52 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Red
- The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
- The terminal is rated 105 deg C and meets SAE-AS7928 requirements
- Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
- Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
- Tin electroplated provides durable long lasting resistance to corrosion
- Nylon insulation is locked in place insulation will not move or twist off
- 300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions
- Nylon insulation is locked in place
- Insulation will not move or twist off
- High dielectric strength and stability in demanding oily environmental conditions
- Color coded provides quick, easy wire size connector selection
Panduit Panduit PV8-14RX-QY | Loose Piece Ring Terminal | UPC - 07498369508 Key Specs
| Note | PV8-14RX-QY replaces PV8-14RX-Q |
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.8 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #8 |
| Minimum Copper Conductor Size (AWG STR) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.38 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV8-14RX-QY | Loose Piece Ring Terminal | UPC - 07498369508 Environmental Information
| Panduit's RoHS Statement | Download and View |
