Panduit PV8-14RX-TY | Pan-Term Ring Terminal, Expanded, Red, Vinyl,...
Description
Description
Our expanded ring terminal easily handles thicker wires due to its wider opening, providing secure, insulated connections for demanding electrical applications.

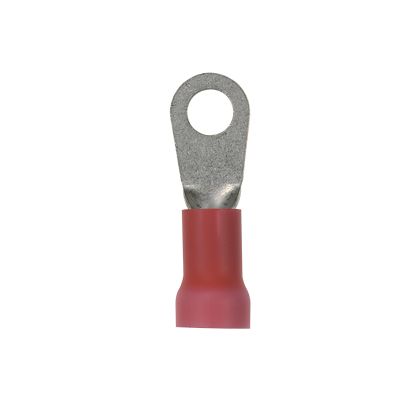

Ring Terminal, large wire, 8 AWG, 1/4" stud size, vinyl expanded insulation, bulk package.
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 8 AWG Conductor, 1/4 in Stud, 1.52 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV8-14RX-TY - Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability U 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV8-14RX-TY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV8-14RX-TY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | 8 |
| Minimum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.65 |
| Barrel Length (mm) | 16.4 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.36 |
| UPC | 07498342202 |
Panduit - PV8-14RX-TY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
