Brand: Panduit
|
SKU:
PAN-PV8-56R-Q

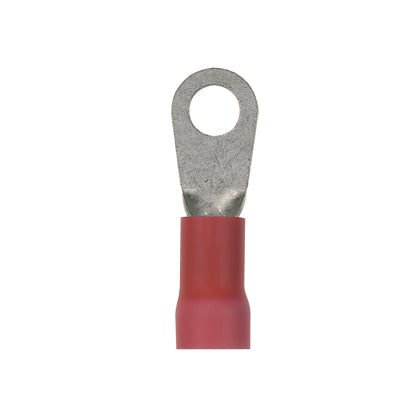

Panduit PV8-56R-QY | Loose Piece Ring Terminal | UPC - 07498369511
Regular price
$77.80
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV8-56R-QY | Loose Piece Ring Terminal | UPC - 07498369511
Regular price
$77.80
Unit price
Brand: Panduit
|
SKU:
PAN-PV8-56R-Q
Regular price
$77.80
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 8 AWG Conductor, 5/16 in Stud, 1.64 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.49 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- One hole with inspection hole
- AN-4 size aircraft cable
- Nylon insulation the insulug type YAEV-l is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals
- Industrials and generating plants
- The nylon insulated seamless
- Electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
- The terminal is rated 105 deg C and meets SAE-AS7928 requirements
- Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance with no seams to split plus ductility for excellent crimp forming properties
- Electro-tin plated provides durable long-lasting corrosion resistance
- Nylon insulation is locked in place insulation will not move or twist off
- 300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions
- Pure electrolytic copper
Panduit PV8-56R-QY | Loose Piece Ring Terminal | UPC - 07498369511 Key Specs
| Note | PV8-56R-QY replaces PV8-56R-Q |
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #8 |
| Minimum Copper Conductor Size (AWG STR) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.38 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 221 |
| Maximum Voltage (kV) | 105 |
| Finish/Coating | Tin-Plated |
Panduit PV8-56R-QY | Loose Piece Ring Terminal | UPC - 07498369511 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV8-8R-QY Product Page | Download and View |
| Application Notes | Narrow Ring Terminal for Use in High Density Terminal Blocks | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV8-56R-QY | Loose Piece Ring Terminal | UPC - 07498369511 Environmental Information
| Panduit's RoHS Statement | Download and View |
