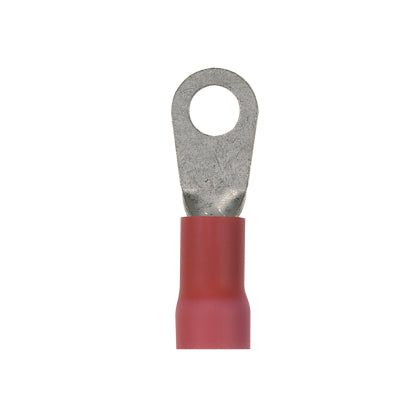

Panduit PV8-56R-TY | Pan-Term Ring Terminal, Red, Vinyl, 8 AWG, 5/1...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 8 AWG, 5/16" stud size, vinyl insulated.
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 8 AWG Conductor, 5/16 in Stud, 1.64 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.49 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV8-56R-TY - Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi finger insulation grip, provides superior insulation holding characteristics, especially on EPR and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power
- 0.156 in Dia maximum insulation, 0.75 in hole center to barrel end, 0.28 in hole center to barrel
- Pure electrolytic copper
- Without inspection hole
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV8-56R-TY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV8-56R-TY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | 8 |
| Minimum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.5 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.28 |
| Insulation Diameter (mm) | 7.1 |
| UPC | 07498341167 |
