Brand: Panduit
|
SKU:
10044836

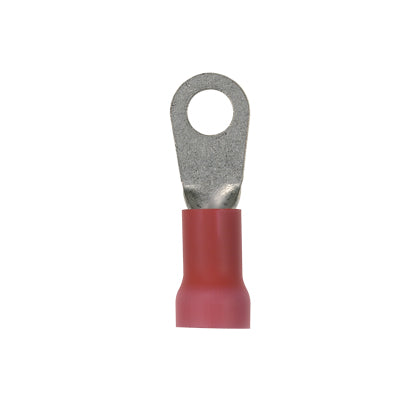

Panduit PV8-8RX-TY | Loose Piece Ring Terminal | UPC - 07498342203
Regular price
$255.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV8-8RX-TY | Loose Piece Ring Terminal | UPC - 07498342203
Regular price
$255.56
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 8 AWG Conductor, #8 Stud, 1-1/2 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.42 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
Panduit Panduit PV8-8RX-TY | Loose Piece Ring Terminal | UPC - 07498342203 Key Specs
| Note | PV8-8RX-TY replaces PV8-8RX-T |
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #8 |
| Minimum Copper Conductor Size (AWG STR) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.38 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV8-8RX-TY | Loose Piece Ring Terminal | UPC - 07498342203 Environmental Information
| Panduit's RoHS Statement | Download and View |
