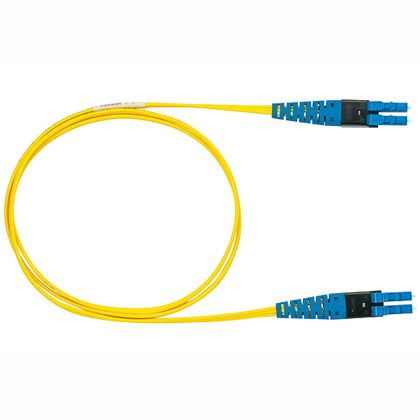

Panduit PVF9L10-10M9.5Y | Patch Cord
Description
Description
Single-mode LSZH LC LC patch cord, 95 m, Yellow
The fiber patch cords shall be constructed of industry leading materials. The fiber patch cords shall be terminated at each end with an enhanced performance LC connector that also terminates the copper conductor on the top of the plug. The fiber patch cords shall be available in single mode and multi-mode configuration. The fiber patch cords shall be used in the fiber patch field of a PanView iQ System.
Panduit PanView iQ Fiber Optic Patch Cord, Duplex OS1/OS2 Singlemode LSZH, 2 Fibers, 32.17 ft Length, LC to LC Connector, 9 um Core, 125 um Clad, Yellow Jacket
Panduit - PVF9L10-10M9.5Y - Features
- Oxide inhibitor for compression conductor connections lowers electrical resistance of compression joint while sealing out air and moisture to prevent the formation of surface oxides
- Wide operating temperature range; can be used in a wide range of electrical and environmental conditions
- Packaged in convenient dispenser bottles
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVF9L10-10M9.5Y - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Os2 |
| Length | 9.5 M | 31.2 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Note | PVF9L10-10M9.5Y replaces PVF9L10-10M9.5 |
| Fiber Type | OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 31.16 |
| Overall Length (m) | 9.5 |
| Fiber Diameter (µm) | 9 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-7 (International) TIA-604-10 (FOCIS-10) UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498305890 |
Panduit - PVF9L10-10M9.5Y - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
