Panduit PVFXL10-10M6.5Y | Patch Cord
Description
Description

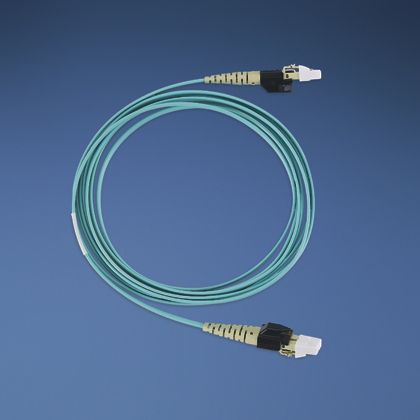

Multimode LSZH OM3 LC LC patch cord, 65 m, Aqua
The fiber patch cords shall be constructed of industry leading materials. The fiber patch cords shall be terminated at each end with an enhanced performance LC connector that also terminates the copper conductor on the top of the plug. The fiber patch cords shall be available in single mode and multi-mode configuration. The fiber patch cords shall be used in the fiber patch field of a PanView iQ System.
Panduit PanView iQ Fiber Optic Patch Cord, OM3 Duplex Multimode, 2 Fibers, 21.33 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, LSZH Jacket, Aqua
Panduit - PVFXL10-10M6.5Y - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVFXL10-10M6.5Y - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 6.5 M | 21.33 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 21.32 |
| Overall Length (m) | 6.5 |
| Fiber Diameter (µm) | 50 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-7 (International) TIA-604-10 (FOCIS-10) UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498317663 |
Panduit - PVFXL10-10M6.5Y - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
