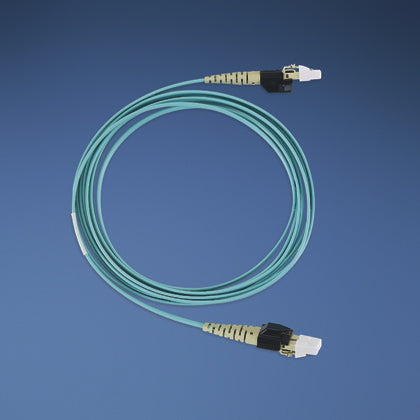

Panduit PVFZL10-10M2Y | PanView iQ Fiber Optic Patch Cord
Description
Description
Our LC duplex patch cords provide real-time monitoring and management of your data center's fiber connections, optimizing the performance and ensuring network performance and uptime.
Multimode LSZH OM4 LC LC patch cord for use in PViQ system, 20 m, Aqua
The fiber patch cords shall be constructed of industry leading materials. The fiber patch cords shall be terminated at each end with an enhanced performance LC connector that also terminates the copper conductor on the top of the plug. The fiber patch cords shall be available in single mode and multi-mode configuration. The fiber patch cords shall be used in the fiber patch field of a PanView iQ System.
Panduit PanView iQ Fiber Optic Patch Cord, Duplex OM4 Multi-Mode LSZH, 2 Fibers, 6.56 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket
Panduit - PVFZL10-10M2Y - Features
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVFZL10-10M2Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PVFZL10-10M2Y |
| Connector Type | Lc - Lc |
| Fiber Type | Om4 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | PanView iQ |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (m) | 2 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10) |
| UPC | 07498375201 |
Panduit - PVFZL10-10M2Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
