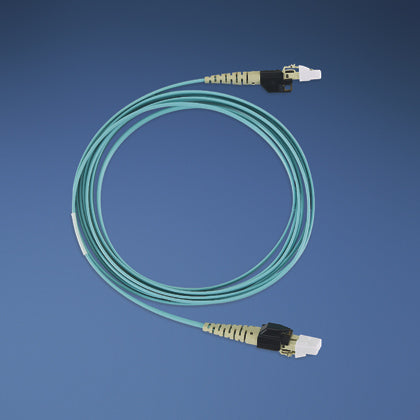

Panduit PVFZL10-10M3.5Y | Patch Cord
Description
Description
Multimode LSZH OM4 LC LC patch cord for use in PViQ system, 35 m, Aqua
The fiber patch cords shall be constructed of industry leading materials. The fiber patch cords shall be terminated at each end with an enhanced performance LC connector that also terminates the copper conductor on the top of the plug. The fiber patch cords shall be available in single mode and multi-mode configuration. The fiber patch cords shall be used in the fiber patch field of a PanView iQ System.
Panduit PanView iQ Fiber Optic Patch Cord, Duplex OM4 Multi-Mode LSZH, 2 Fibers, 11.48 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket
Panduit - PVFZL10-10M3.5Y - Features
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVFZL10-10M3.5Y - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 3.5 M | 11.48 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 11.48 |
| Overall Length (m) | 3.5 |
| Fiber Diameter (µm) | 50 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-7 (International) TIA-604-10 (FOCIS-10) UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498375204 |
Panduit - PVFZL10-10M3.5Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
