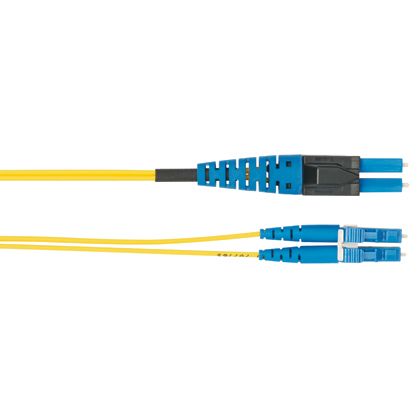

Panduit PVQ9PE10LQM09.5 | PVIQ LC to Standard LC Fiber, OS2 Interconnect Duplex Patch Cord, Plenum, 9.5M
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PVQ9PE10LQM09.5 | PVIQ LC to Standard LC Fiber, OS2 Interco...
Description
Description
Our LC duplex patch cords provide real-time monitoring and management of your data center's fiber connections, optimizing the performance and ensuring network performance and uptime.
PanView iQ duplex LC to duplex standard LC, OS2, fiber interconnect patch cord, plenum rated, 16mm jacketed cable,9.5 m, Yellow
Interconnect fiber patch cords shall include a PanView iQ LC connector on one end, which shall include a copper conductor on top of the plug, which shall mate with a PanView iQ patch panel. The other end of the interconnect fiber patch cord shall include a standard, duplex LC connector, which shall be compatible with LC based transceiver interfaces in equipment such as switches and routers. The fiber patch cords shall be available in single mode and multimode configuration. Fiber interconnect cords shall enable intelligent physical infrastructure management for interconnect architecture by verifying switch port connection and communicating with the system software to allow improved network visibility.
Panduit PanView iQ Fiber Optic Patch Cord, OS1/OS2 Duplex Interconnect Singlemode, 2 Fibers, 32.17 ft Length, LC to LC Connector, 9 um Core, 125 um Clad, Plenum Jacket, Yellow
Panduit - PVQ9PE10LQM09.5 - Features
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVQ9PE10LQM09.5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PVQ9PE10LQM09.5 |
| Connector Type | Lc - Lc |
| Fiber Type | Os2 |
| Length | 9.5 M | 31.2 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | PanView iQ |
| Flammability Rating | Plenum (OFNP) |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.6299216 |
| Outer Diameter (mm) | 16 |
| Overall Length (ft.) | 31 |
| Overall Length (m) | 9.5 |
| Cable Color | Yellow |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10) |
| UPC | 07498363802 |
Panduit - PVQ9PE10LQM09.5 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
