Panduit PVQXLE10LQM03.5 | Patch Cord
Description
Description
Interconnect fiber patch cords shall include a PanView iQ LC connector on one end, which shall include a copper conductor on top of the plug, which shall mate with a PanView iQ patch panel. The other end of the interconnect fiber patch cord shall include a standard, duplex LC connector, which shall be compatible with LC based transceiver interfaces in equipment such as switches and routers. The fiber patch cords shall be available in single mode and multimode configuration. Fiber interconnect cords shall enable intelligent physical infrastructure management for interconnect architecture by verifying switch port connection and communicating with the system software to allow improved network visibility.

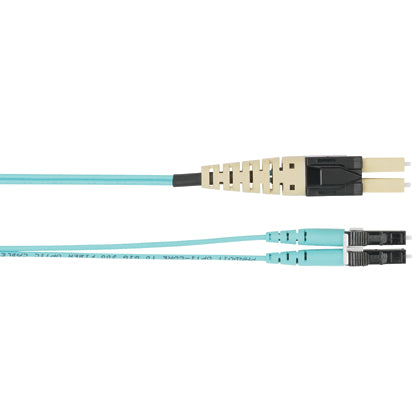

Panduit PanView iQ Fiber Optic Patch Cord, Duplex Interconnect OM3 LSZH, 2 Fibers, 11.48 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket
Panduit - PVQXLE10LQM03.5 - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVQXLE10LQM03.5 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 11.48 |
| Overall Length (m) | 3.5 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-20 (International Interface Standard) TIA-604-10 (FOCIS-10) IEC 60332-3 (LSZH) flame rating, RoHS Compliant |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498363675 |
Panduit - PVQXLE10LQM03.5 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
