Panduit PVQXLE10LQM04.5 | Patch Cord
Regular price
$111.58
Unit price
Brand: Panduit
|
SKU:
658637
Regular price
$111.58
Unit price
Description
Description
Panduit PVQXLE10LQM04.5 | Patch Cord

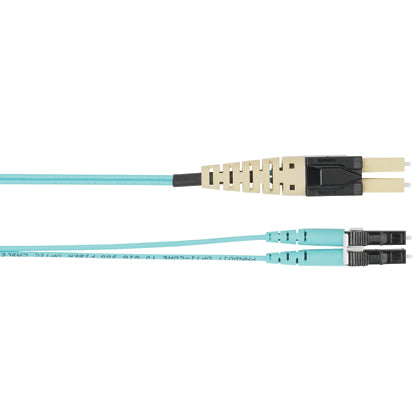

PVQXLE10LQM04.5 PanView iQ duplex LC to duplex standard LC OM3 fiber interconnect patch cord LSZH rated 1.6mm jacketed cable.
Panduit - PVQXLE10LQM04.5 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
Specifications
Specifications
Panduit - PVQXLE10LQM04.5 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Flammability Rating | LSZH |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (m) | 4.5 |
| Overall Length (ft.) | 14.76 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (mm) | 1.6 |
| Outer Diameter (In.) | 0.06 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-20 (International Interface Standard) TIA-604-10 (FOCIS-10) IEC 60332-3 (LSZH) flame rating, RoHS Compliant |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498363677 |
Panduit - PVQXLE10LQM04.5 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
