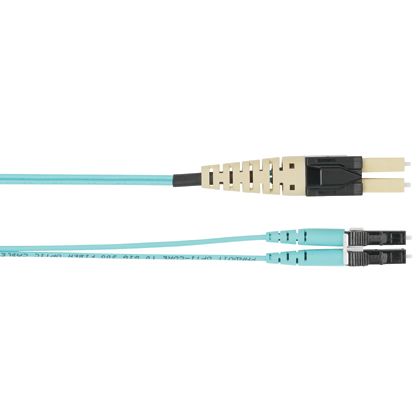

Panduit PVQZPE10LQM06.0 | Patch Cord
Description
Description
PanView iQ duplex LC to duplex standard LC, OM4, fiber interconnect patch cord, plenum rated, 16mm jacketed cable,6.0m, Aqua
Interconnect fiber patch cords shall include a PanView iQ LC connector on one end, which shall include a copper conductor on top of the plug, which shall mate with a PanView iQ patch panel. The other end of the interconnect fiber patch cord shall include a standard, duplex LC connector, which shall be compatible with LC based transceiver interfaces in equipment such as switches and routers. The fiber patch cords shall be available in single mode and multimode configuration. Fiber interconnect cords shall enable intelligent physical infrastructure management for interconnect architecture by verifying switch port connection and communicating with the system software to allow improved network visibility.
Panduit PanView iQ Fiber Optic Patch Cord, Duplex OM4 Plenum, 2 Fibers, 19.69 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket
Panduit - PVQZPE10LQM06.0 - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVQZPE10LQM06.0 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 6 M | 19.69 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 19.68 |
| Overall Length (m) | 6 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-20 (International Interface Standard)TIA-604-10 (FOCIS-10)NFPA 262 (OFNP) flame ratings, RoHS Compliant |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498363749 |
Panduit - PVQZPE10LQM06.0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
