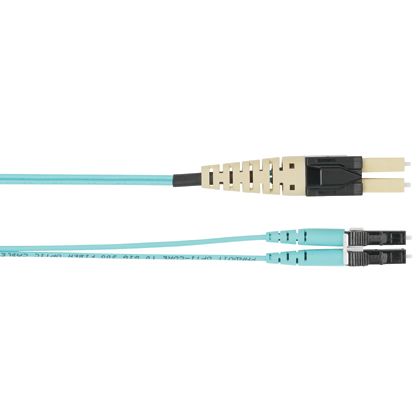

Panduit PVQZPE10LQM07.0 | Patch Cord
Description
Description
PanView iQ duplex LC to duplex standard LC, OM4, fiber interconnect patch cord, plenum rated, 16mm jacketed cable,7.0m, Aqua
Interconnect fiber patch cords shall include a PanView iQ LC connector on one end, which shall include a copper conductor on top of the plug, which shall mate with a PanView iQ patch panel. The other end of the interconnect fiber patch cord shall include a standard, duplex LC connector, which shall be compatible with LC based transceiver interfaces in equipment such as switches and routers. The fiber patch cords shall be available in single mode and multimode configuration. Fiber interconnect cords shall enable intelligent physical infrastructure management for interconnect architecture by verifying switch port connection and communicating with the system software to allow improved network visibility.
Panduit PanView iQ Fiber Optic Patch Cord, Duplex Interconnect OM4 Plenum, 2 Fibers, 22.97 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket
Panduit - PVQZPE10LQM07.0 - Features
- An integral one piece copper barrel/insulation grip and wire strain relief design provides improved physical strength characteristics over a multi-piece design
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Brazed seam provides a stronger barrel design to minimize any possible splitting and eliminates folding
- Deep inner barrel serrations provides excellent electrical conductivity and pullout strength values
- Smooth funnel entry provides easy wire insertion
- The insulation is locked in place will not twist off, thereby maintains proper dielectric values
- Electro-tin plated provides durable long-lasting resistance to corrosion
- Color-coded and clearly marked provides quick, easy wire size identification
- Ring tongue provides a secure termination under the screw head that can not be removed without complete removal of the screw
- Two or more terminals may be stacked on a common stud easily provides flexibility and versatility
- Used for MR8-83, MRE1022NV ratchet crimpers, Y10D, Y1022 non-ratchet hand crimper plier
- Provides flexibility and versatility
- 0.12 in Dia maximum insulation, 0.91 in hole center to barrel end, 0.45 in hole center to barrel
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
Specifications
Specifications
Panduit - PVQZPE10LQM07.0 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 7 M | 22.97 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 22.96 |
| Overall Length (m) | 7 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-20 (International Interface Standard)TIA-604-10 (FOCIS-10)NFPA 262 (OFNP) flame ratings, RoHS Compliant |
| Application | Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management |
| Body Style | Duplex |
| Product Type | Patch Cord |
| Sub Brand | PanView iQ |
| UPC | 07498363751 |
Panduit - PVQZPE10LQM07.0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
