Panduit PW100F-C | Pan-Wrap Pw100F-C Split Harness Wrap, Natural, P...
Description
Description

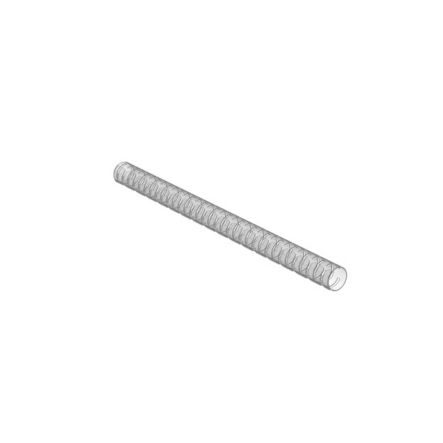

The PW100F-C Pan-Wrap Split Harness Wrap features a patented slot pattern that provides improved flexibility and abrasion protection in any application. The unique wall design is easy for cable breakouts and reduces the installation time. The large overlap accommodates a wide range of bundle diameters. Temperature range: -40°F – 122°F (-40°C – 50°C). Polyethylene. Nominal Diameter: 1" (25.4 mm), 100' (30.5 m) long. Color Natural. 1 per package.
Panduit - PW100F-C - Features
- 1"; Pan-Wrap(TM) Split Harness Wrap
- Slot pattern provides improved flexibility and abrasion protection
- Unique wall design allows easy wire or cable breakouts
- Innovative design maintains uniform bundle protection in dynamic applications; large overlap accommodates a wide range of bundle diameters
- Packaged on a reel for convenient handling and dispensing of product

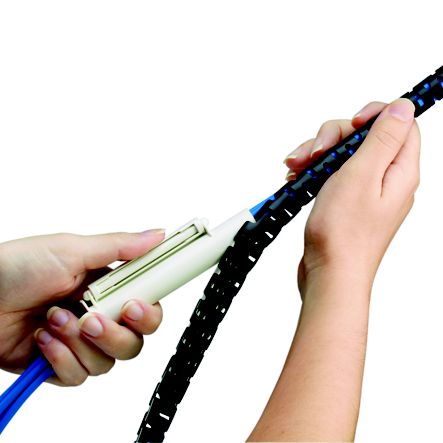

- Patented installation tool with 180 opening allows easy loading of maximum bundle diameters to speed installationNotes: 1) Order number of reels required. 2) Diameter can be further reduced with the use of cable ties. 3) Flame retardant products are manufactured from a material that is rated UL 94V-0.
Specifications
Specifications
Panduit - PW100F-C - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - PW100F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PW100F-C |
| Item Description | Pan-Wrap Pw100F-C Split Harness Wrap, Natural, Pe, 1" Nom Dia., Pk1 |
| Application | Abrasion protection solution engineered for flexibility and maximum protection of wires and cables with considerably reduced installation time |
| Note | Compatible with PWT100 tool |
| Product Type | Split Harness Wrap |
| Sub Brand | Pan-Wrap |
| Color | Natural |
| For Use With | PWT100 Tool |
| Material | Polyethylene |
| Maximum Bundle Diameter (In.) | 1.13 |
| Minimum Bundle Diameter (In.) | 0.81 |
| Maximum Bundle Diameter (mm) | 28.6 |
| Minimum Bundle Diameter (mm) | 20.6 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Abrason Resistance |
| Flammability Rating | UL94-HB |
| Part Features | Patented slot pattern provides improved flexibility and abrasion protection in any application; Unique wall design provides for easy cable breakouts; Reduces installation time; Large overlap accommodates a wide range of bundle diameters |
Panduit - PW100F-C - Package Information
| UPC | 07498334475 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4531 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - PW100F-C - Videos
| Video 1 | Click to View |
|---|
