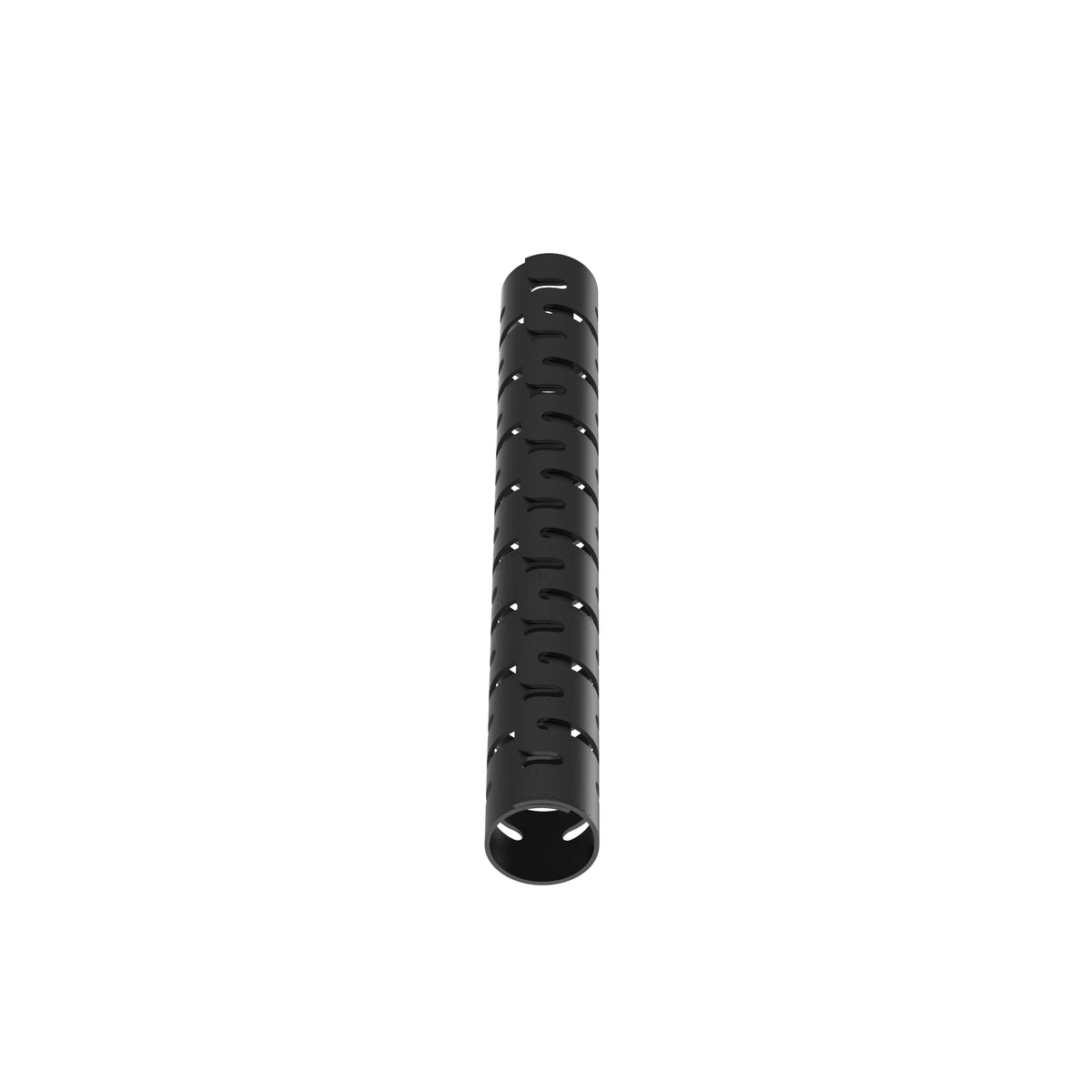

Panduit PW100F-C20 | Split Harness Wrap | UPC - 07498334476
Regular price
$455.19
Unit price
Brand: Panduit
|
SKU:
PW100F-C20
Regular price
$455.19
Unit price
Description
Description
Pan-Wrap split harness wrap is an innovative addition to the Panduit abrasion protection line. It features slotted walls that provide flexibility and allow for easy breakouts along the length of the harness. Pan-Wrap tools are available for quick and easy installation. The Pan-Wrap product line helps you to manage your physical infrastructure effectively.
Panduit Pan-Wrap Split Harness Wrap, 1 in ID Dia, 30-1/2 m Length, 28.6 mm Maximum Bundle Dia, 20.6 mm Minimum Bundle Dia, -40 to 122 deg F, Polyethylene, Black
Features + Benefits
- Patented slot pattern provides improved flexibility and abrasion protection in any application
- Unique wall design provides for easy cable breakouts
- Innovative design maintains uniform bundle protection in dynamic application
- Considerably reduces installation time
- Large overlap accommodates a wide range of bundle diameter
- Packaged on a reel for easy handling and dispensing of product
Panduit PW100F-C20 | Split Harness Wrap | UPC - 07498334476 Key Specs
| Application | Abrasion protection solution engineered for flexibility and maximum protection of wires and cables with considerably reduced installation time |
| Note | Compatible with PWT100 tool |
| Product Type | Split Harness Wrap |
| Sub Brand | Pan-Wrap |
| Color | Black |
| For Use With | PWT100 Tool |
| Material | Polyethylene |
| Maximum Bundle Diameter (In.) | 1.13 |
| Minimum Bundle Diameter (In.) | 0.81 |
| Maximum Bundle Diameter (mm) | 28.6 |
| Minimum Bundle Diameter (mm) | 20.6 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Abrason Resistance |
Panduit PW100F-C20 | Split Harness Wrap | UPC - 07498334476 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PW38F-TL Product Page-1 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - PW38F-TL Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - GB2508BH A RV 01A | Download and View |
Panduit PW100F-C20 | Split Harness Wrap | UPC - 07498334476 Environmental Information
| Panduit's RoHS Statement | Download and View |
