Panduit PW100FR-CY | Pan-Wrap Split Harness Wrap
Regular price
$479.16
Unit price
Brand: Panduit
|
SKU:
10647321
Regular price
$479.16
Unit price
Description
Description

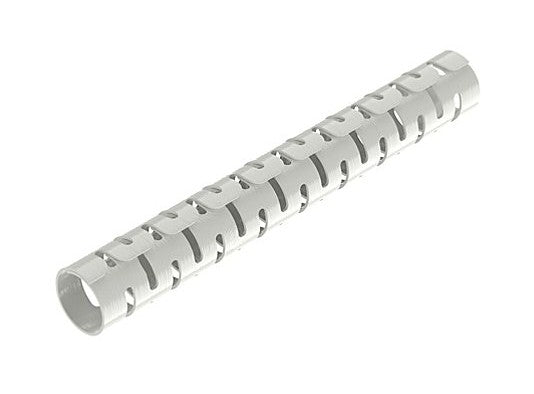

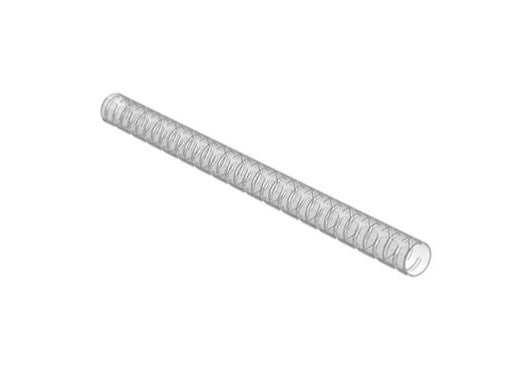

Panduit PW100FR-CY | Pan-Wrap Split Harness Wrap
Our split harness wrap offers flexible, abrasion-resistant cable protection with quick and easy installation, maintains uniform bundle protection in dynamic applications.
Specifications
Specifications
Panduit - PW100FR-CY - Specifications
| Note | Compatible with PWT100 tool. |
|---|---|
| Product Type | Split Harness Wrap |
| Sub Brand | Pan-Wrap™ |
| Application | Abrasion protection solution engineered for flexibility and maximum protection of wires and cables with considerably reduced installation time |
| Color | Natural |
| For Use With | PWT100 Tool |
| Material | Polyethylene |
| Maximum Bundle Diameter (In.) | 1.13 |
| Maximum Bundle Diameter (mm) | 28.6 |
| Minimum Bundle Diameter (In.) | 0.81 |
| Minimum Bundle Diameter (mm) | 20.6 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.48 |
