Brand: Panduit
|
SKU:
PWMS-H25-C
Panduit PWMS-H25-C Winged Push Barb Cable Tie Mount, pack of 100
Regular price
$48.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

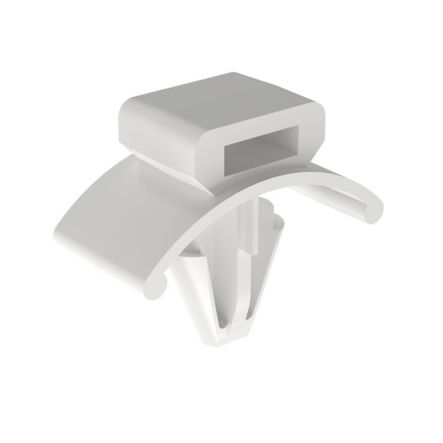

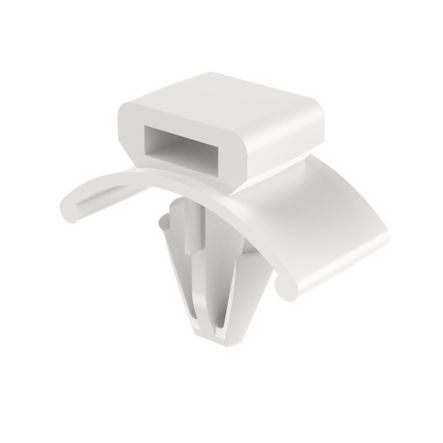

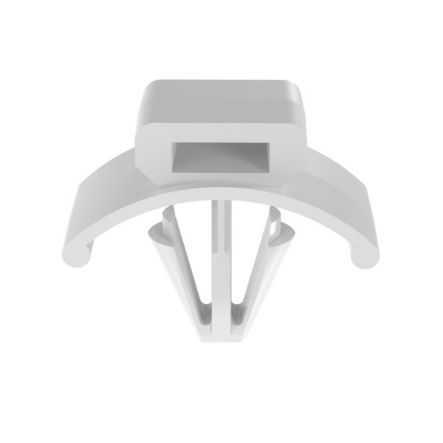

Panduit PWMS-H25-C Winged Push Barb Cable Tie Mount, pack of 100
Regular price
$48.31
Unit price
Description
Description
Panduit PWMS-H25-C | PWMS-H25-C Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.37", PK100
Panduit PWMS-H25-C Fir Winged Push Barb Mounts have a winged base that applies pressure on the panel wall to provide a more secure mount in high vibration application. Mounts are inserted int a 0.25" (6.5mm) pre-drilled hole. For use in indoor environments with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 100.
Specifications
Specifications
Panduit - PWMS-H25-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PWMS-H25-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PWMS-H25-C |
| Item Description | PWMS-H25-C Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.37", PK100 |
| Application | Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.11 |
| Maximum Compatible Panel Thickness (mm) | 2.8 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.3 |
| Standards Met | CE Compliant,UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - PWMS-H25-C - Package Information
| UPC | 07498358374 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0133 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.1329 |
