Brand: Panduit
|
SKU:
PAN-PWMS-H25-M0
Panduit PWMS-H25-M0 | Cable Tie Mount, Black, UV PA 6.6, Push Barb, 0.71x0.37", PK1000
Regular price
$327.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PWMS-H25-M0 | Cable Tie Mount, Black, UV PA 6.6, Push Barb,...
Regular price
$327.46
Unit price
Brand: Panduit
|
SKU:
PAN-PWMS-H25-M0
Regular price
$327.46
Unit price
Shipping calculated at checkout.
Description
Description

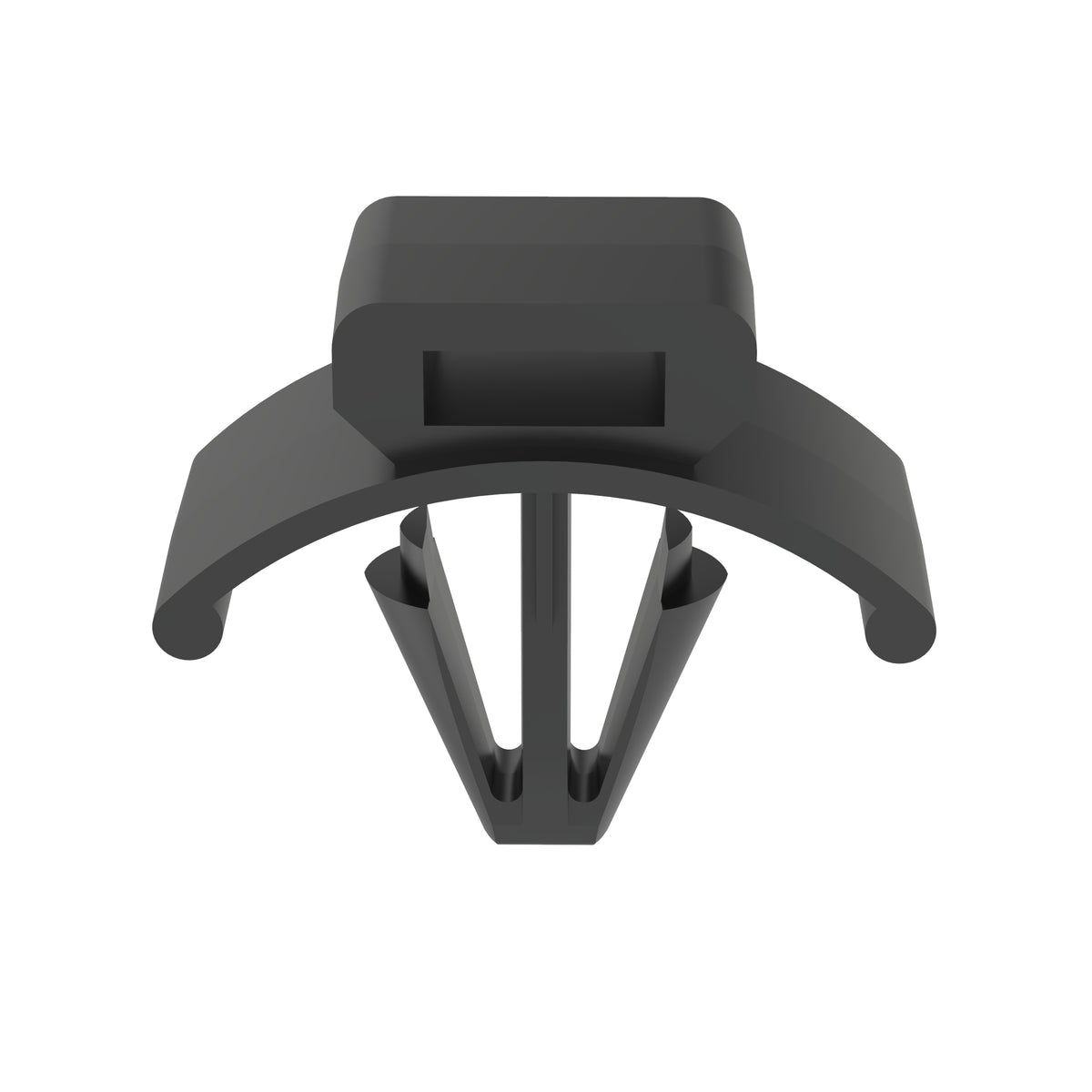

Panduit PWMS-H25-M0 | Cable Tie Mount, Black, UV PA 6.6, Push Barb, 0.71x0.37", PK1000
High vibration environments demand secure solutions. Our winged push barb cable tie mount is made from Nylon 6.6, ensuring stability and durability for reliable cable management indoors
Panduit Cable Tie Mount, Through Hole, Push Barb Mount, 3/4 in Base Length, 0.37 in Base Width, Nylon, Black
Panduit - PWMS-H25-M0 - Features
- Wing provides added stability
- Requires no adhesive or additional mounting hardware
- Can be used where only one side of the panel is accessible
- Polyamide (PA) insulation
- Weather resistant
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - PWMS-H25-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PWMS-H25-M0 |
| Product Type | Cable Tie Mount |
| Application | Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.11 |
| Maximum Compatible Panel Thickness (mm) | 2.8 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant,UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498324800 |
