Brand: Panduit
|
SKU:
10433650
Panduit PXR1AJD | FMPS Class 4 Receiver 1.6KW, 48VDC, 3 Input, 3 Output
Regular price
$3,629.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PXR1AJD | FMPS Class 4 Receiver 1.6KW, 48VDC, 3 Input, 3 Ou...
Regular price
$3,629.51
Unit price
Description
Description

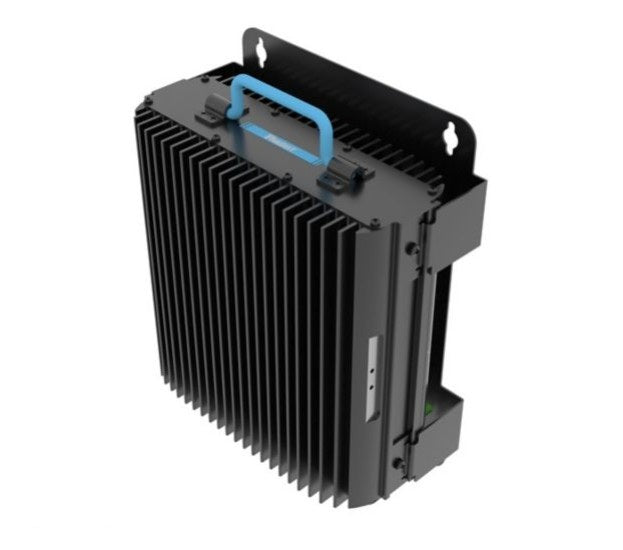

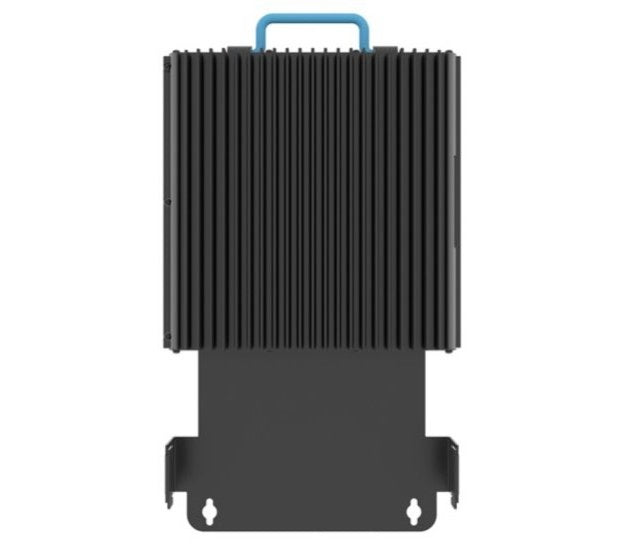

Panduit PXR1AJD | FMPS Class 4 Receiver 1.6KW, 48VDC, 3 Input, 3 Output

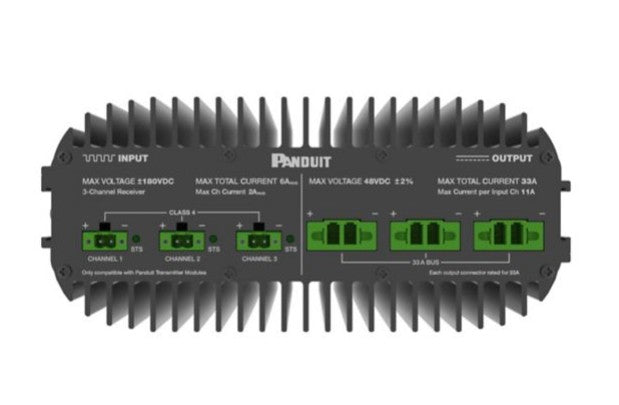

Panduit FMPS Class 4 Receiver - 1600W, 48VDC Output. Three input channels connect to three Transmitter Modules using copper conductor pairs. Three output channels, each rated for Max Aggregate load of 1600W. Comes with connectors, wall mount bracket, and grounding lug.
Specifications
Specifications
Panduit - PXR1AJD - Specifications
| Product Type | Receiver |
|---|---|
| Input Voltage (V) | ±180 VDC |
| Output Voltage (V) | ±48 VDC |
| Input Amperage (A) | 2 |
| Output Amperage (A) | 33 |
| Output Power (W) | 1600 |
| Power Input Connector | Screw Terminal Plug |
| Power Output Connector | Screw Terminal Plug |
| Number of Inputs | 3 |
| Overall Length (mm) | 240 |
| Overall Height (In.) | 4.2 |
| Weight (lb) | 15.45 |
| Mount Method | Wall Mount |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Humidity (%) | 85 |
Panduit - PXR1AJD - Package Information
| UPC | 61305688567 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.2159 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0 |
