Panduit PZAEGK | Structured Ground Zone Enclosure Grounding Kit
Description
Description
Achieve secure grounding with our zone enclosure grounding kit. Includes anti-rotation design, grounding washer, and ESD port. Easy to install, perfect for active wall mount enclosures.

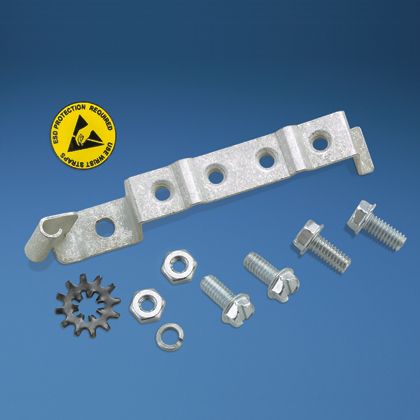

One tin-plated copper bracket; 3.92" L x .56" W x .79" H (99.6mm x 14.2mm x 20.1mm); provided with four #12-24 screws, one each #10-32 and #10-24 hex nut, #10 split lock washer, grounding washer and ESD protection sticker.
Panduit StructuredGround Zone Enclosure Grounding Kit, For Use With: PZAEWM3 and PZBASE3 Wall Mount Enclosures, Metallic, 3.92 in L x 0.56 in W x 0.79 in H
Panduit - PZAEGK - Features
- Patented bracket provides equipotential bonding and protection from static electricity for equipment housed in enclosures
- A discrete grounding point for each piece of equipment within the enclosure allows equipment to be easily added or moved without disturbing other grounding connections
- Anti-rotation design prevents one hole lugs from loosening
- Grounding washer provides a high performance electrical bond, eliminating the need to manually remove paint
- Built in ESD port provides a convenient docking station for ESD wrist strap
- Provides proper bonding of PanZone active wall mount enclosure PZAEWM3
- Provides equipotential bonding and protection from static electricity for equipment housed in enclosures
- A discrete grounding point for each piece of equipment within the enclosure allows equipment to be easily added or moved without disturbing other grounding connections
- Anti-rotation design prevents one-hole lugs from loosening
- Grounding washer provides a high performance electrical bond, eliminating the need to manually remove paint
- Built-in ESD port provides a convenient docking station for ESD wrist strap
- Provides proper bonding of PanZone(TM) Active Wall Mount Enclosure PZAEWM3
Specifications
Specifications
Panduit - PZAEGK - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PZAEGK |
| Component | Grounding Kits |
| Connection Type | Mechanical |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Color | Metallic |
| Application | Control Panel |
| Product Type | Zone Enclosure Grounding Kit |
| UPC | 07498300385 |
Panduit - PZAEGK - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
