Brand: Panduit
|
SKU:
369303
Panduit PZICE | Passive In-Ceiling Enclosure, 8Ru
Regular price
$3,924.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PZICE | Passive In-Ceiling Enclosure, 8Ru
Regular price
$3,924.44
Unit price
Description
Description

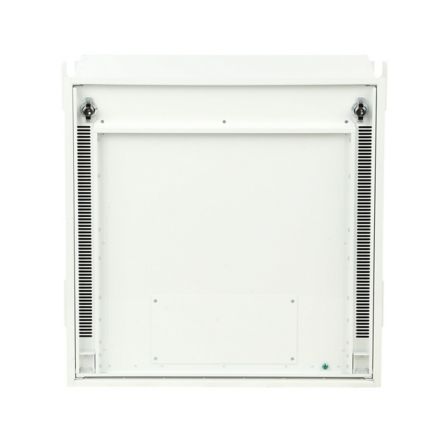

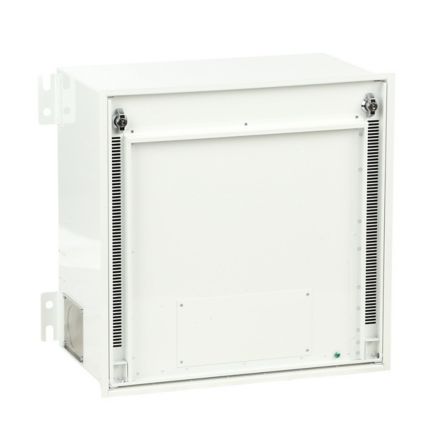

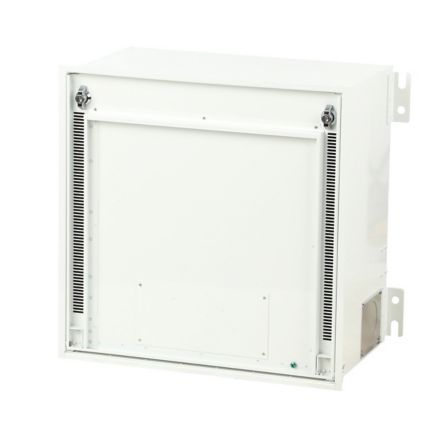

Panduit PZICE | Passive In-Ceiling Enclosure, 8Ru
The PanZone Passive In-Ceiling Enclosure, With hinged door gas-assist air cylinders accepts up to 8 RU of standard 19in patch panels, includes mounting brackets and integrated horizontal slack manager.
Panduit - PZICE - Features
- Fully assembled in-ceiling enclosure. Accepts up to 8 RU of standard 19"; patch panels. Includes mounting brackets and integrated horizontal slack manager.
- External dimensions: 13.50";H x 25.50";W x 27.50";D (342.9mm x 647.7mm x 698.5mm).
- Internal dimensions: 11.49";H x 22.31";W x 22.46";D (291.8mm x 566.7mm x 570.5mm).
- Designed to accept up to 2 RU of active electronics as deep as 17.5"; and up to 6 RU of standard 19"; passive connectivity (PZICEA only)
- Designed to accept up to 8 RU standard 19"; passive connectivity (PZICE only)
- Thermal management design optimizes air flow for improved heat dissipation; ideal for high heat load PoE enabled switch applications
- Mount in 2’; x 2’;, 2’; x 4’;, and 2’; x 6’; drop ceilings
- 50 pound door weight capacity
- Include doorplate, equipment mounting bracket, integrated horizontal cable lack manager
- AC power ready - receptacle not included (PZICEA only)
- Includes low decibel 60 CFM fan (PZICEA only)
- In-Ceiling Enclosure With Gas-Assist Door Air Cylinders
- Material: Aluminum
- Color: White
- Number Of Rack Spaces: 0
- Includes: Mounting Brackets And Integrated Horizontal Slack Manager
- Dimension: 23.5 Inch Height x 23.5 Inch Width x 13.43 Inch Depth (596.9 mm x 596.9 mm x 341.1 mm)
Specifications
Specifications
Panduit - PZICE - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Zone Enclosures
Panduit - PZICE - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PZICE |
| Item Description | Passive In-Ceiling Enclosure, 8Ru |
| Product Type | In Ceiling Enclosure |
| Material | Steel |
| Maximum Load Capacity (kg) | 22.7 |
| Maximum Load Capacity (lb) | 50 |
| Number of Rack Units | 8 |
| Overall Width (In.) | 23.5 |
| Overall Width (mm) | 596.9 |
| Overall Depth (In.) | 13.43 |
| Overall Depth (mm) | 341.1 |
| Overall Height (In.) | 23.5 |
| Overall Height (mm) | 596.9 |
| Color | White |
| Sub Brand | PanZone |
| Standards Met | UL 2043 Plenum Rated and UL 1863 Rated, OSPHD (OPM), RoHS Compliant |
Panduit - PZICE - Package Information
| UPC | 07498300907 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 6.0381 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
