Panduit PZLRB2U | Overhead Distribution Rack, 2-Post, 2RU, #12-24 T...
Description
Description
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is black.
Panduit - PZLRB2U - Features
- 2 RU ladder rack bracket. Dimensions: 8.75";H x 20.26";W x 3.26";D (222.3mm x 514.6mm x 82.8mm).
- Ideal solutions for adding more rack spaces above racks or cabinets in data centers or telecommunication rooms
- Universal mounting bracket can be mounted to most industry ladder racks or cable trays or suspended by threaded rod from ceiling
- Multiple mounting configurations
- 40/60/80 lbs. load rating
- Optional cable management solutions (PZBR4 and CMVDR2)
Specifications
Specifications
Panduit - PZLRB2U - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Racks
Panduit - PZLRB2U - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PZLRB2U |
| Item Description | Overhead Distribution Rack, 2-Post, 2RU, #12-24 Threaded E-Rails, Black |
| Note | Rack channel depth is 3.3" (83mm) |
| Material | Steel |
| Mounting Bolt Method | Threaded |
| Extended Height (In.) | 4.8 |
| Extended Height (mm) | 121 |
| Overall Width (In.) | 20.3 |
| Overall Width (mm) | 515 |
| Extended Depth (In.) | 6.4 |
| Extended Depth (mm) | 161 |
| Number of Rack Units | 2 |
| Mounting Hole Thread Size | #12-24 |
| Static Load Capacity (kg) | 18 |
| Static Load Capacity (lb) | 40 |
| Sub Brand | PanZone |
| Color | Black |
| Standards Met | EIA/ECA-310-E, RoHS Compliant |

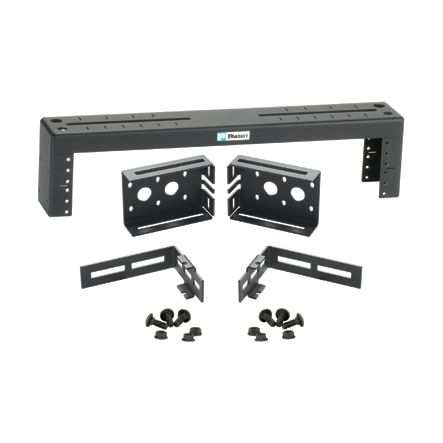

| Includes | Main bracket, mounting brackets and hardware, and (8) #12-24 screws |
| Product Type | Overhead Distribution Rack |
| Finish/Coating | Powder Coat |
Panduit - PZLRB2U - Package Information
| UPC | 07498348508 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.8311 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
