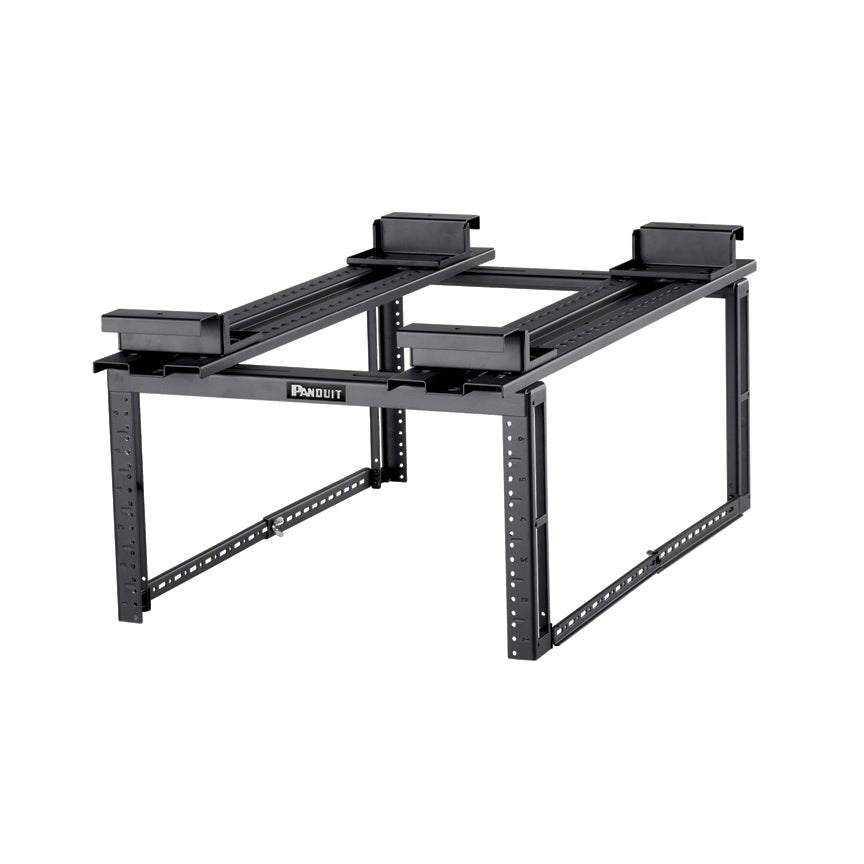

Panduit PZLRB4P6 | Overhead Distribution Rack | UPC - 07498322971
Regular price
$1,324.84
Unit price
Brand: Panduit
|
SKU:
959939
Regular price
$1,324.84
Unit price
Description
Description
Panduit PanZone Rack System, 4-Post 6RU Overhead, 20.3 in Width, 18 to 30 in Depth, 14.3 in Height, 150 lb Load, Steel, Black
Features + Benefits
- Mounts switch equipment above racks or cabinet allows maximum utilization of available rack or cabinet space in a top of rack switching configuration
- Designed for use with Wyr-Grid overhead pathway and will work with basket tray or ladder rack
- Rack will fit over a 600 mm W cabinet
- Rack has adjustable depth/adjust from 18 to 30 in (457 to 762 mm) D to accommodate various equipment depths
- Vertical managers with covers manage cabling, from overhead rack, down into rack or cabinet
- End panels provide aesthetic panels at the end condition
- Heavy duty steel frame supports switch and patching above rack or cabinet
- Mounts on strut supported with threaded rod to the ceiling
Panduit PZLRB4P6 Key Specs
| Note | Rack has adjustable depth |
| Material | Steel |
| Mounting Bolt Method | Threaded |
| Overall Width (In.) | 20.3 |
| Overall Width (mm) | 515 |
| Number of Rack Units | 6 |
| Mounting Hole Thread Size | #12-24 |
| Static Load Capacity (lb) | 150 |
| Sub Brand | PanZone |
| Color | Black |
| Standards Met | RoHS Compliant |
| Product Type | Overhead Distribution Rack |
| Static Load Capacity (Kg) | 68.0 |
Panduit PZLRB4P6 Data Sheets
| Part Drawings | StrongHold Miniature and Intermediate Ties | Download and View |
| Flyers | StrongHold General Purpose Contractor Ties | Download and View |
