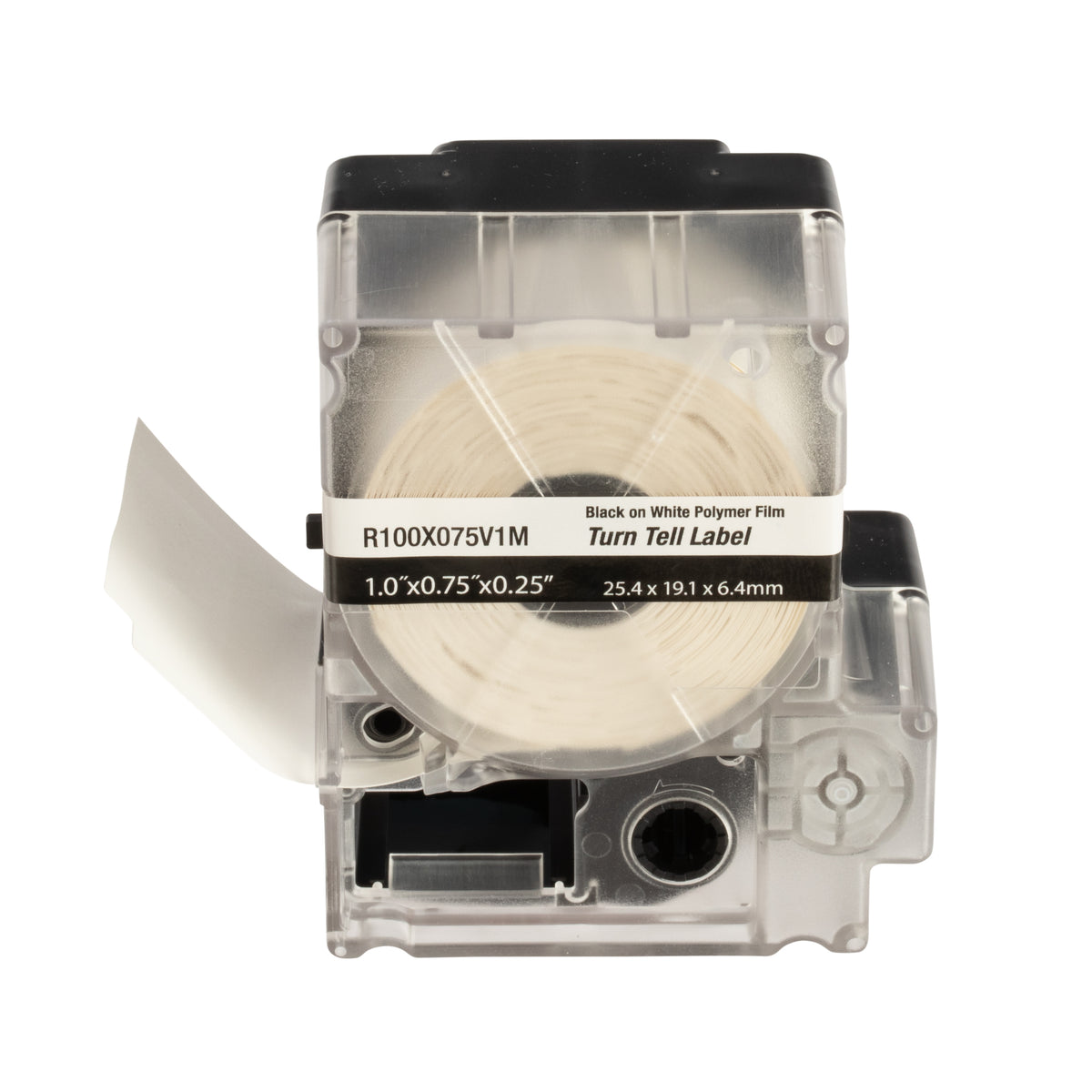

Panduit R100X075V1M | Label Cassette | UPC - 61305676166

The R100X075V1M Self-Laminating Turn-Tell Label Cassette includes both label material and ribbon for easy changeover. The label design allows rotation for visibility from any angle - reposition on the wire/cable to align legends and improve aesthetics. Can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cables. For use with the MP300 printer. Vinyl. 1" x 0.75" (25.4 mm x 19.1 mm). Color Clear/White. 175 labels per cassette. 1 cassette per package.

---

Panduit Panduit R100X075V1M | Label Cassette | UPC - 61305676166 Key Specs

Note	For use with MP300 printer
Product Type	Label Cassette
Cable Type	18 - 14 AWG
Color	White
Compatible Wire Gauge (AWG)	18-14
Material	Vinyl
Number of Labels per Cassette	175
Standards Met	RoHS Compliant
Label Length (In.)	0.75
Label Length (mm)	19.1
Label Width (In.)	1
Label Width (mm)	25.4
Label Height (In.)	0.75
Label Height (mm)	19.1
Maximum Cable Diameter (In.)	0.16
Maximum Cable Diameter (mm)	4
Minimum Cable Diameter (In.)	0.12
Minimum Cable Diameter (mm)	3.1
Minimum Operating Temperature (°C)	-40
