Panduit R100X150V7T | Turn-Tell R100X150V7T Turn-Tell Label
Description
Description

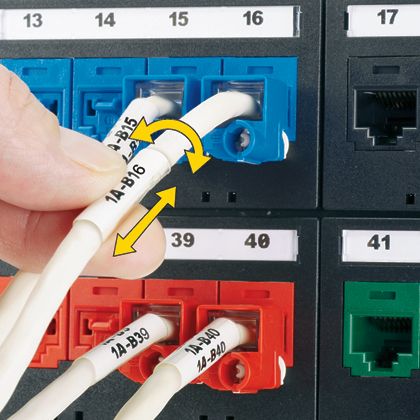

The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a red print-on area color. The label is 1.0" wide and 1.5" long (25.4 x 38.1 mm). It has a 3.0" (76.2 mm) core and supports 10-6 AWG wire / cable and Cat 5e/6/6A UTP and Cat. 5e FTP cables. It has 4 labels per row and comes in packages of 2500. It can be used with Easy-Mark Plus Labeling Software.
Specifications
Specifications
Panduit - R100X150V7T - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - R100X150V7T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | R100X150V7T |
| Item Description | Turn-Tell R100X150V7T Turn-Tell Label |
| Note | For use with TDP printers |
| Product Type | Turn-Tell Label |
| Sub Brand | Turn-Tell |
| Cable Type | 10-6 AWG/Cat. 5e/6/6A UTP/Cat. 5e FTP |
| Color | Red |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 10-6 AWG/Cat. 5e/6/6A UTP/Cat. 5e FTP |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7.1 |
| Minimum Cable Diameter (In.) | 0.22 |
| Minimum Cable Diameter (mm) | 5.6 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 2500 |
| Label Application | Cable & Wire Marking |
Brand Name - R100X150V7T - Package Information
| UPC | 07498331767 |
|---|---|
| Standard Package Quantity | 2500 |
| Standard Package Volume (cf) | 0.6347 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - R100X150V7T - Videos
| Video URL 1 | Click to View |
|---|
