Panduit R100X400X1J | Turn-Tell Turn-Tell Label
Description
Description

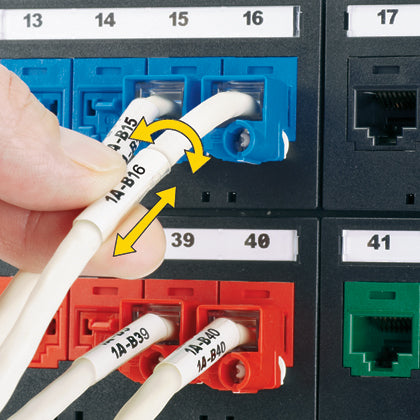

Rotate our turn-tell laser/inkjet label 360°, providing your with easy identification on wires and cables and ensuring visibility from any angle when used with your inkjet printer.
The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 1.0" (25.4 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 4.0" long (25.4 x 101.6 mm). It supports 2-1 A WG wire/cable. It has 6 labels per row, 12 labels per sheet, and comes in packages of 1000. This Turn-Tell label is available in P1 label Cassettes for the LS8E or LS8EQ printer series and computer printable rolls. It can be used with Easy-Mark Labelin g Software and thermal transfer printers.
Panduit Turn-Tell Component Label, Self-Laminating, 4 in Length, 1 in W, Clear/White, Vinyl, For Use With: Easy-Mark Labeling Software and Thermal Transfer, LS8E or LS8EQ, Laser and Ink-Jet Printer
Panduit - R100X400X1J - Features
- The tape can be cut to any length so you only use what you actually need
- Tabbed end at the beginning of the roll for easier starting
- Flexible polyester marker tape conforms tightly to wires/cables
- Pre-printed black on white vinyl cloth, adhesive back markers
- Indoor/outdoor rated for resistance to UV light, chemical atmosphere and abrasion
- Excellent long lasting adhesion properties
Specifications
Specifications
Panduit - R100X400X1J - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | R100X400X1J |
| Type | Printers |
| UNSPSC Code | 55120000 |
| Note | For use with laser and ink jet printers |
| Product Type | Turn-Tell Label |
| Sub Brand | Turn-Tell |
| Cable Type | 2-1 AWG |
| Color | White |
| Material | Polymer |
| Printer Type | Laser/Inkjet |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 2-1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.1 |
| Minimum Cable Diameter (In.) | 0.39 |
| Minimum Cable Diameter (mm) | 9.9 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| UPC | 07498379915 |
