Panduit R200X400V1T | Turn-Tell Turn-Tell Label
Description
Description

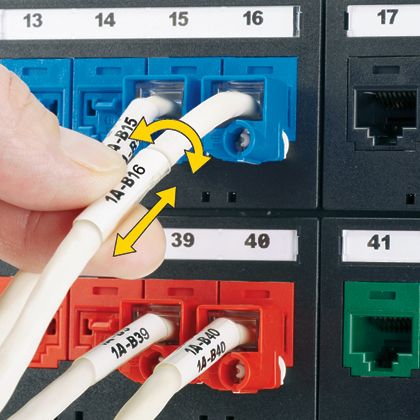

Rotate, label and identify with ease with our turn-tell thermal transfer label. Streamline your operations for easy identification for your wires and cables, perfect for various applications.
The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50 (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 2.00" wide and 4.00" long (50.8 x 57.2 mm). It has a 3.0" (76.2 mm) core and supports 2 AWG- 250 MCM wire/cable. It has 2 of labels per row and comes in packages of 1000. This Turn-Tell label is available in P1 label Cassettes for the LS8E or LS8EQ printer series and computer printable rolls. It can be used with Easy-Mark Labe ling Software and thermal transfer printers.
Panduit Turn-Tell Dot-Matrix Label, Self-Laminating, 4 in Length, 2 in W, White, Vinyl, For Use With: Easy-Mark Labeling Software and Desktop Thermal Transfer Printer
Panduit - R200X400V1T - Features
- Innovative label design allows labels to rotate for visibility from any angle and for repositioning on the wire or cable to align legends and improve aesthetics
- Labels can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cables
Specifications
Specifications
Panduit - R200X400V1T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | R200X400V1T |
| Type | Labels |
| Label Types | Vinyl |
| Size | 3" |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers |
| Product Type | Turn-Tell Label |
| Sub Brand | Turn-Tell |
| Cable Type | 2-1 AWG |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 2-1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.1 |
| Minimum Cable Diameter (In.) | 0.39 |
| Minimum Cable Diameter (mm) | 9.9 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| UPC | 07498321939 |
Panduit - R200X400V1T - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3919.10.2055 |
Panduit - R200X400V1T - Videos
| Panduit R200X400V1T Video 1 | Click to View |
|---|
