Panduit R4P23CN96 | 4-Post Rack, 52Ru, 23 In. Deep, Cage Nut E-Rails, Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit R4P23CN96 | 4-Post Rack, 52Ru, 23 In. Deep, Cage Nut E-Rail...
Description
Description

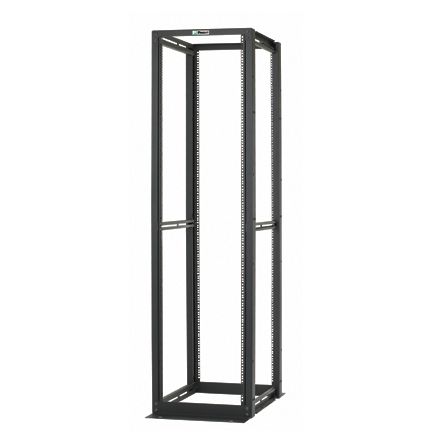

The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 52 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 23 inches deep, with adjustable mounting rails that have cage nut EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.
Panduit - R4P23CN96 - Features
- 4 post EIA rack with cage nut rails. Dimensions: 96.0";H x 23.3";W x 23.2";D (2441mm x 591mm x 584mm)
Specifications
Specifications
Panduit - R4P23CN96 - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Racks
Panduit - R4P23CN96 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | R4P23CN96 |
| Item Description | 4-Post Rack, 52Ru, 23 In. Deep, Cage Nut E-Rails, Black |
| Note | Front and rear E-Rails are adjustable in 1" (25mm) increments |
| Material | Steel |
| Mounting Bolt Method | Cage Nut |
| Extended Height (In.) | 96 |
| Extended Height (mm) | 2.441 |
| Overall Width (In.) | 23.25 |
| Overall Width (mm) | 591 |
| Extended Depth (In.) | 23 |
| Extended Depth (mm) | 584 |
| Number of Rack Units | 52 |
| Rail Number Direction | Reversible |
| Static Load Capacity (kg) | 1134 |
| Static Load Capacity (lb) | 2500 |
| Color | Black |
| Standards Met | UL 2416, EIA/ECA-310-E, RoHS Compliant |
| Includes | (16) 3/8-16 x 1" hex bolt, (16) 3/8" paint piercing grounding washer, (1) tube of anti-oxidizing paste, (25) 12-24 x .5" slotted pan head steel screw, (25) #12-24 cage nuts |
| Product Type | Four Post Rack |
| Finish/Coating | Powder Coat |
Panduit - R4P23CN96 - Package Information
| UPC | 07498308270 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 11.6253 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - R4P23CN96 - Videos
| Video 1 | Click to View |
|---|
