Panduit R4P36 | 4-Post Rack, 45RU, 36 in. Deep, #12-24 Threaded E-R...
Regular price
$1,834.30
Unit price
Brand: Panduit
|
SKU:
443266-CIR
Regular price
$1,834.30
Unit price
Description
Description

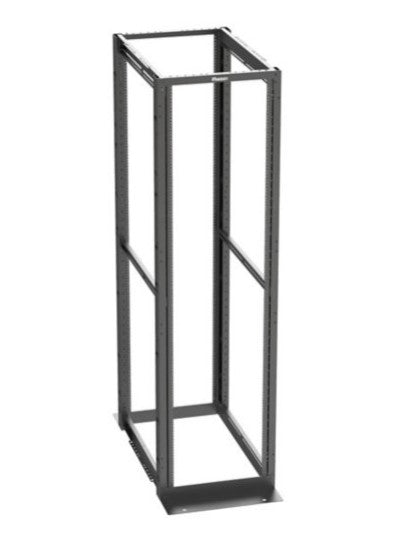

Panduit R4P36 | 4-Post Rack, 45RU, 36 in. Deep, #12-24 Threaded E-Rails, Black
The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 36 inches deep, with adjustable mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.
Specifications
Specifications
Panduit - R4P36 - Specifications
| Note | Front and rear E-Rails are adjustable in 1" (25mm) increments |
|---|---|
| Material | Steel |
| Mounting Bolt Method | Threaded |
| Extended Depth (In.) | 36 |
| Extended Depth (mm) | 914 |
| Overall Width (In.) | 23.25 |
| Overall Width (mm) | 591 |
| Extended Height (In.) | 84 |
| Extended Height (mm) | 2134 |
| Number of Rack Units | 45 |
| Mounting Hole Thread Size | #12-24 |
| Rail Number Direction | Reversible |
| Static Load Capacity (kg) | 1134 |
| Static Load Capacity (lb) | 2500 |
| Color | Black |
| Standards Met | UL 2416, EIA/ECA-310-E, RoHS Compliant |
| Includes | (16) 3/8-16 x 1" hex bolt, (16) 3/8" paint piercing grounding washer, (1) tube of anti-oxidizing paste, (25) 12-24 x .5" slotted pan head steel screw |
| Product Type | 4-Post Rack |
| Finish/Coating | Powder-Coated |
| Seismic Rating | No |
| Type | Four-Post |
| UNSPSC Code | 24102001 |
Panduit - R4P36 - Package Information
| UPC | 07498308909 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 12.6374 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Panduit - R4P36 - Video
| Panduit R4P36 Videos | Click to View |
|---|
