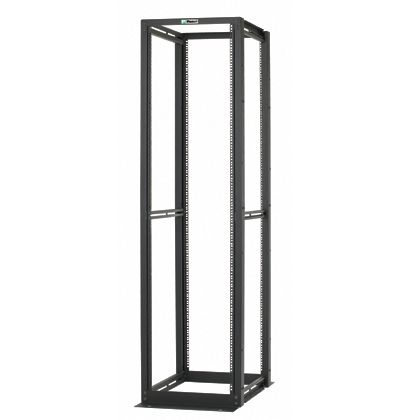

Panduit R4P79 | 4-Post Rack, 42RU, 30 in. Deep, #12-24 Threaded E-R...
Description
Description
Get the best of both worlds with this sturdy, open-frame rack that offers the accessibility of an open rack and the stability of a cabinet with adjustable rails to hold a variety of equipment sizes.
The premium Panduit Four-post Rack System combines the stability of a cabinet with the accessibility of an open rack to provide the user with maximum flexibility when designing a data-center network layout. Four steel vertical posts and adjustable fron t and rear mounting rails provide the required strength and flexibility needed to work with various types of active equipment. Steel, 42 RU, 30in deep, #12-24 Threaded Mounting Holes, Black, 1pc + hardware kit and paint piercing bonding kit.
Panduit Rack System, 4-Post Premium, 23-1/4 in Width, 30 in D, 79 in Height, 2500 lb, 42 Shelves, Steel
Panduit - R4P79 - Features
- Combines the stability of a cabinet with the accessibility of an open rack to provide the user with maximum flexibility when designing a data center network layout
- Four steel vertical posts and adjustable front and rear mounting rails provide the required strength and flexibility needed to work with various types of active equipment
Specifications
Specifications
Panduit - R4P79 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | R4P79 |
| Color | Black |
| Rack Units | 42U |
| Height | Greater Than 6’ To 7’ |
| Material | Steel |
| Mounting Width | 19" |
| Type | Four-Post |
| UNSPSC Code | 24102001 |
| Note | Front and rear E-Rails are adjustable in 1" (25mm) increments |
| Material | Steel |
| Mounting Bolt Method | Threaded |
| Extended Depth (In.) | 30 |
| Extended Depth (mm) | 762 |
| Extended Height (In.) | 79 |
| Extended Height (mm) | 2.006 |
| Overall Width (In.) | 23.25 |
| Overall Width (mm) | 591 |
| Number of Rack Units | 42 |
| Mounting Hole Thread Size | #12-24 |
| Rail Number Direction | Reversible |
| Static Load Capacity (kg) | 1134 |
| Static Load Capacity (lb) | 2500 |
| Color | Black |
| Standards Met | UL 2416, EIA/ECA-310-E, RoHS Compliant |
| Includes | (16) 3/8-16 x 1" hex bolt, (16) 3/8" paint piercing grounding washer, (1) tube of anti-oxidizing paste, (25) 12-24 x .5" slotted pan head steel screw |
| Product Type | 4-Post Rack |
| Finish/Coating | Powder-Coated |
| UPC | 07498333063 |
Panduit - R4P79 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
