Brand: Panduit
|
SKU:
165442

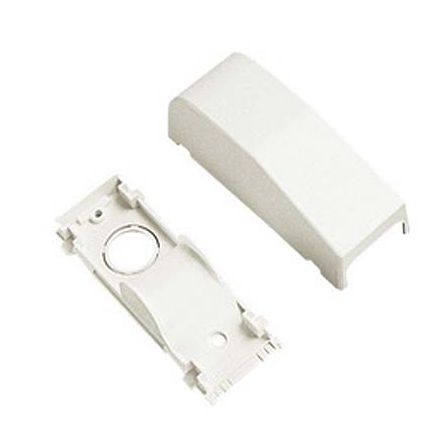

Panduit RAEFXIW-X Right Angle, Entrance End Power Rated, 1";BRC Fitting for LD,LDPH3,5,10, LDS3,5, Off White, Pack of 10
Regular price
$112.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RAEFXIW-X Right Angle, Entrance End Power Rated, 1";BR...
Regular price
$112.44
Unit price
Description
Description
Panduit RAEFXIW-X | Surface Raceway, LD/LDPH Power Rated 1" BRC, Off-White
The LD/LDPH Power Rated, 1" BRC is designed to maintain proper bend radius within the channel. It is Off-White.
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - RAEFXIW-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAEFXIW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAEFXIW-X |
| Item Description | Surface Raceway, LD/LDPH Power Rated 1" BRC, Off-White |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Entrance End/Right Angle |
| For Use With | LD3, LDPH3, LDS3, LD5, LDPH5, LDS5, LD10, LDPH10 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 1.88 |
| Overall Height (mm) | 47.6 |
| Overall Length (In.) | 5.05 |
| Overall Length (mm) | 128 |
| Overall Width (In.) | 1.94 |
| Overall Width (mm) | 49.2 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit - RAEFXIW-X - Package Information
| UPC | 07498353064 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.2298 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - RAEFXIW-X - Videos
| Video 1 | Click to View |
|---|
