Brand: Panduit
|
SKU:
176826

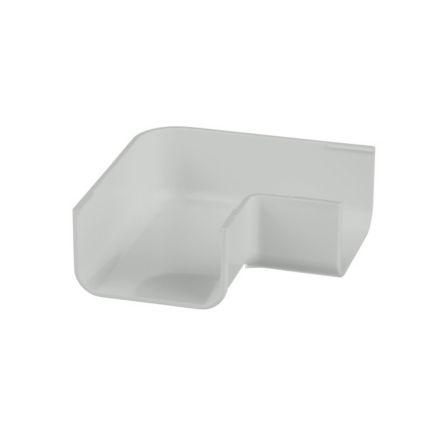

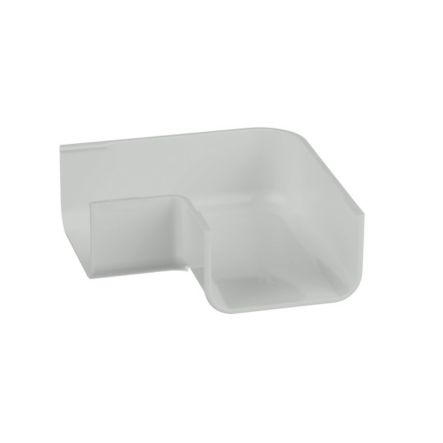

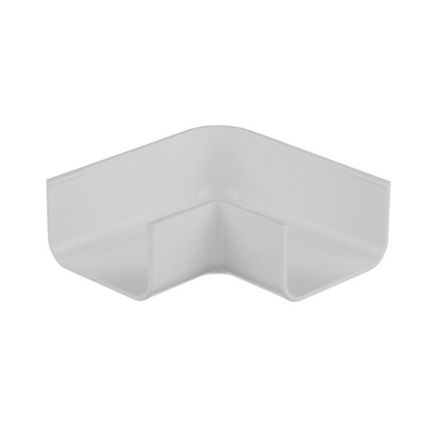

Panduit RAF10IG-X | LD10 Low Voltage Right Angle Fitting, International Gray, Pack of 10
Regular price
$26.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RAF10IG-X | LD10 Low Voltage Right Angle Fitting, Internati...
Regular price
$26.36
Unit price
Description
Description
Panduit RAF10IG-X | Surface Raceway, LD10 Low Volt. Right Angle Fitting, Int. Gray
The Right Angle Fitting is a one-piece raceway fitting designed to transition your raceway around a corner. This raceway fitting is made to be used with the LD10 raceway. It is a snap-on installation. It measures 2.5" in length. It is constructed with rigid PVC and is International Gray.
Specifications
Specifications
Panduit - RAF10IG-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAF10IG-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAF10IG-X |
| Item Description | Surface Raceway, LD10 Low Volt. Right Angle Fitting, Int. Gray |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | International Gray |
| Fitting Type | Right Angle |
| For Use With | LD10 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.91 |
| Overall Height (mm) | 23.1 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
| Overall Width (In.) | 2.5 |
| Overall Width (mm) | 63.5 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
Panduit - RAF10IG-X - Package Information
| UPC | 07498326270 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0839 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.4196 |
