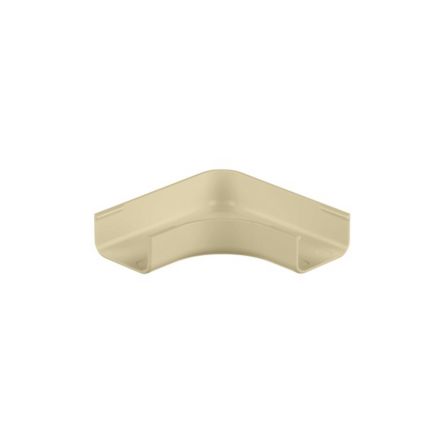

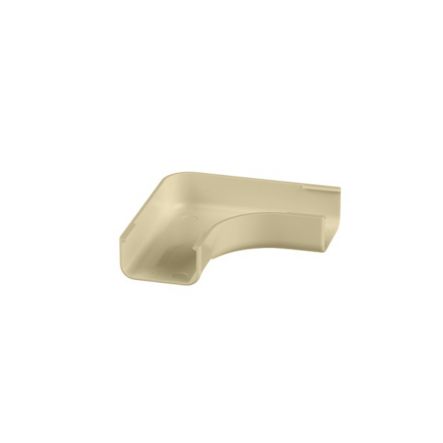

Panduit RAF3EI-E | LD3 Low Voltage Right Angle Fitting, Electric Ivory
Regular price
$3.00
Unit price
Brand: Panduit
|
SKU:
106750-EA
Regular price
$3.00
Unit price
Description
Description
Panduit RAF3EI-E | Surface Raceway, LD3 Low Volt. Right Angle Fitting,, Elec Ivory
The right angle fitting is a Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LD3 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is Electric Ivory.
Right angle fitting for use with LD3 raceway.
Specifications
Specifications
Panduit - RAF3EI-E - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAF3EI-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAF3EI-E |
| Item Description | Surface Raceway, LD3 Low Volt. Right Angle Fitting,, Elec Ivory |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Right Angle |
| For Use With | LD3 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Overall Length (In.) | 1.82 |
| Overall Length (mm) | 46.2 |
| Overall Width (In.) | 1.82 |
| Overall Width (mm) | 46.2 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
Panduit - RAF3EI-E - Package Information
| UPC | 07498325178 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0370 |
| Standard. Ctn. Quantity | 100 |
| Standard. Ctn. Volume (cf) | 0.1851 |
