Panduit RAF5EI-E | Surface Raceway, Ld5 Low Volt. Right Angle Fitti...
Regular price
$3.00
Unit price
Brand: Panduit
|
SKU:
106762-EA
Regular price
$3.00
Unit price
Description
Description

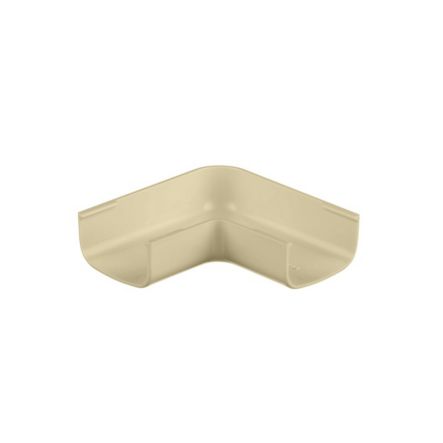

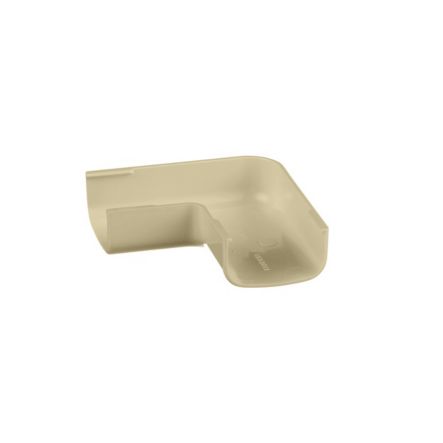

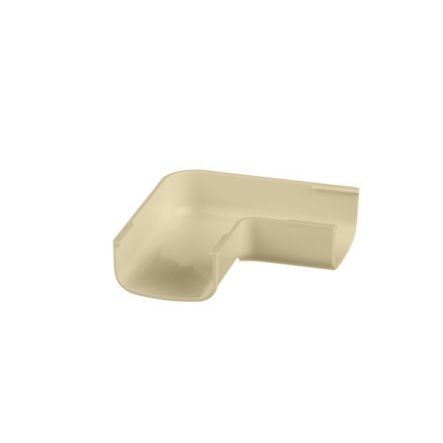

Panduit RAF5EI-E | Surface Raceway, Ld5 Low Volt. Right Angle Fitting, Elec Ivory
The right angle fitting is a Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LD5 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is Electric Ivory.
Specifications
Specifications
Panduit - RAF5EI-E - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAF5EI-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAF5EI-E |
| Item Description | Surface Raceway, Ld5 Low Volt. Right Angle Fitting, Elec Ivory |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Right Angle |
| For Use With | LD5 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.58 |
| Overall Height (mm) | 14.7 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
Panduit - RAF5EI-E - Package Information
| UPC | 07498325185 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0539 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.2694 |
Panduit - RAF5EI-E - Videos
| Video 1 | Click to View |
|---|
