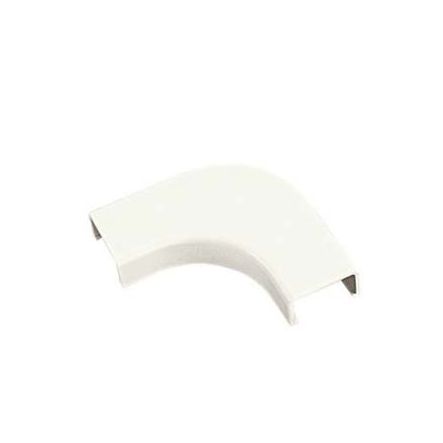

Panduit RAFC3WH-X LD3, LDPH3/ LDS3 Bend Radius Right Angle Fitting,...
Regular price
$30.02
Unit price
Brand: Panduit
|
SKU:
166070
Regular price
$30.02
Unit price
Description
Description
Panduit RAFC3WH-X | Surface Raceway, LD3/LDPH3 Right Angle, White
The right angle fitting is a Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LD3/LDPH3 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is Electric Ivory.
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - RAFC3WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAFC3WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAFC3WH-X |
| Item Description | Surface Raceway, LD3/LDPH3 Right Angle, White |
| Product Type | Bend Radius Control Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Right Angle |
| For Use With | LD3, LDPH3, LDS3 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.47 |
| Overall Height (mm) | 11.9 |
| Overall Length (In.) | 2.23 |
| Overall Length (mm) | 56.6 |
| Overall Width (In.) | 2.23 |
| Overall Width (mm) | 56.6 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit - RAFC3WH-X - Package Information
| UPC | 07498361462 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0370 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 0.1851 |
Panduit - RAFC3WH-X - Videos
| Video 1 | Click to View |
|---|
