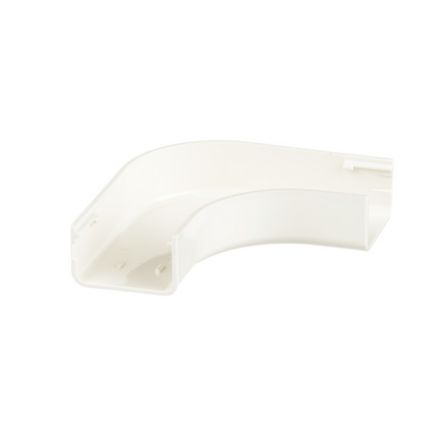

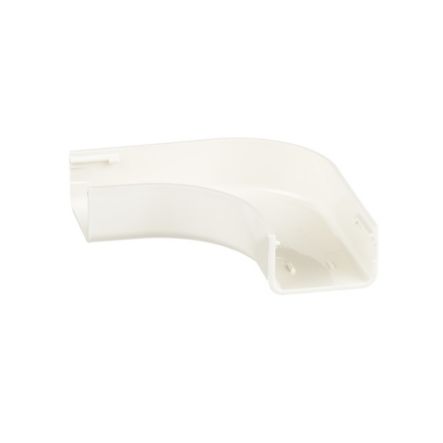

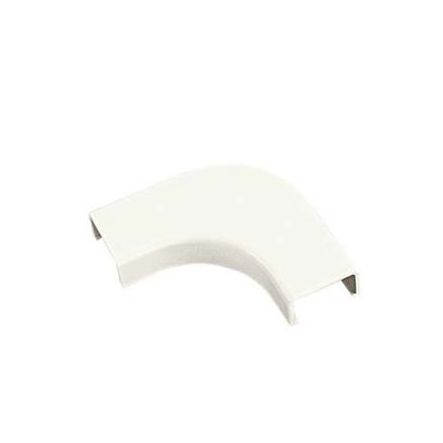

Panduit RAFC5IW-X | Surface Raceway, Ld5/Ldph5 Right Angle, Off-White
Regular price
$32.63
Unit price
Brand: Panduit
|
SKU:
165404
Regular price
$32.63
Unit price
Description
Description
Panduit RAFC5IW-X | Surface Raceway, Ld5/Ldph5 Right Angle, Off-White
The right angle fitting is a Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LD5/LDPH5 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is Off-White.
Panduit - RAFC5IW-X - Features
- One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - RAFC5IW-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - RAFC5IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAFC5IW-X |
| Item Description | Surface Raceway, Ld5/Ldph5 Right Angle, Off-White |
| Product Type | Bend Radius Control Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Right Angle |
| For Use With | LD5, LDPH5 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.64 |
| Overall Height (mm) | 16.3 |
| Overall Length (In.) | 2.58 |
| Overall Length (mm) | 65.5 |
| Overall Width (In.) | 2.58 |
| Overall Width (mm) | 65.5 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit - RAFC5IW-X - Package Information
| UPC | 07498355641 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0539 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.2694 |
Panduit - RAFC5IW-X - Videos
| Video 1 | Click to View |
|---|
