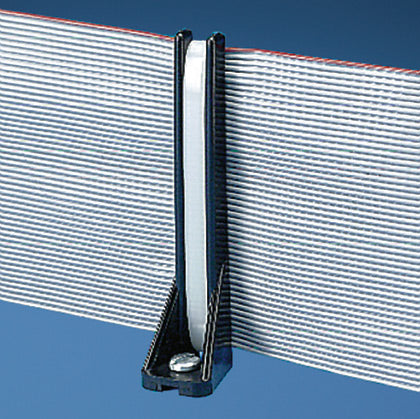

Panduit RAFCBI2-S6-C20 | Right Angle Flat Cable Mount Base
Description
Description
Panduit Right Angle Base, Threaded Mount, 2 in Maximum Tie Width, 2.78 in Base Length, 0.63 in Base Width, Nylon 6.6, Black
Designed for indoor use, the right angle flat cable mount base organizes your workspace to make it neater and more efficient. Made from Nylon 6.6, it's designed for durability.
Panduit RAFCBI2-S6-C20 Right Angle Base Mounts support cables above the mounting surface. Mounts are 2.78 (70.6mm) in height and accept flat cables up to 2.0" (50.8 mm) in width. For use in indoor environments and with #6 (M3) screws. Made of Nylon 6.6 are black in color and come in packages of 100.
Panduit - RAFCBI2-S6-C20 - Features
- Manage multiple employees and energy sources involved in a group lockout procedure
- Accommodates up to 13 padlocks
- Applications: For Supporting Cables above Mounting Surface
- Supports cable above the mounting surface
- Polyamide (PA) insulation
Specifications
Specifications
Panduit - RAFCBI2-S6-C20 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | UL Listed: E136577; ; CE Compliant; RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | For Supporting Cables above Mounting Surface |
| Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| For Use With | Flat Cable |
| Mount Method | Cable Tie, Screw |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Overall Height (In.) | 2.78 |
| Overall Height (mm) | 70.6 |
| Flat Cable Width (In.) | 2 |
| Screw Size | #6 (M3) |
| Standards Met | UL Listed: E136577; ; CE Compliant; RoHS Compliant |
| UPC | 07498359343 |
Panduit - RAFCBI2-S6-C20 - Package Information
| UPC | 07498359343 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0882 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.8823 |
