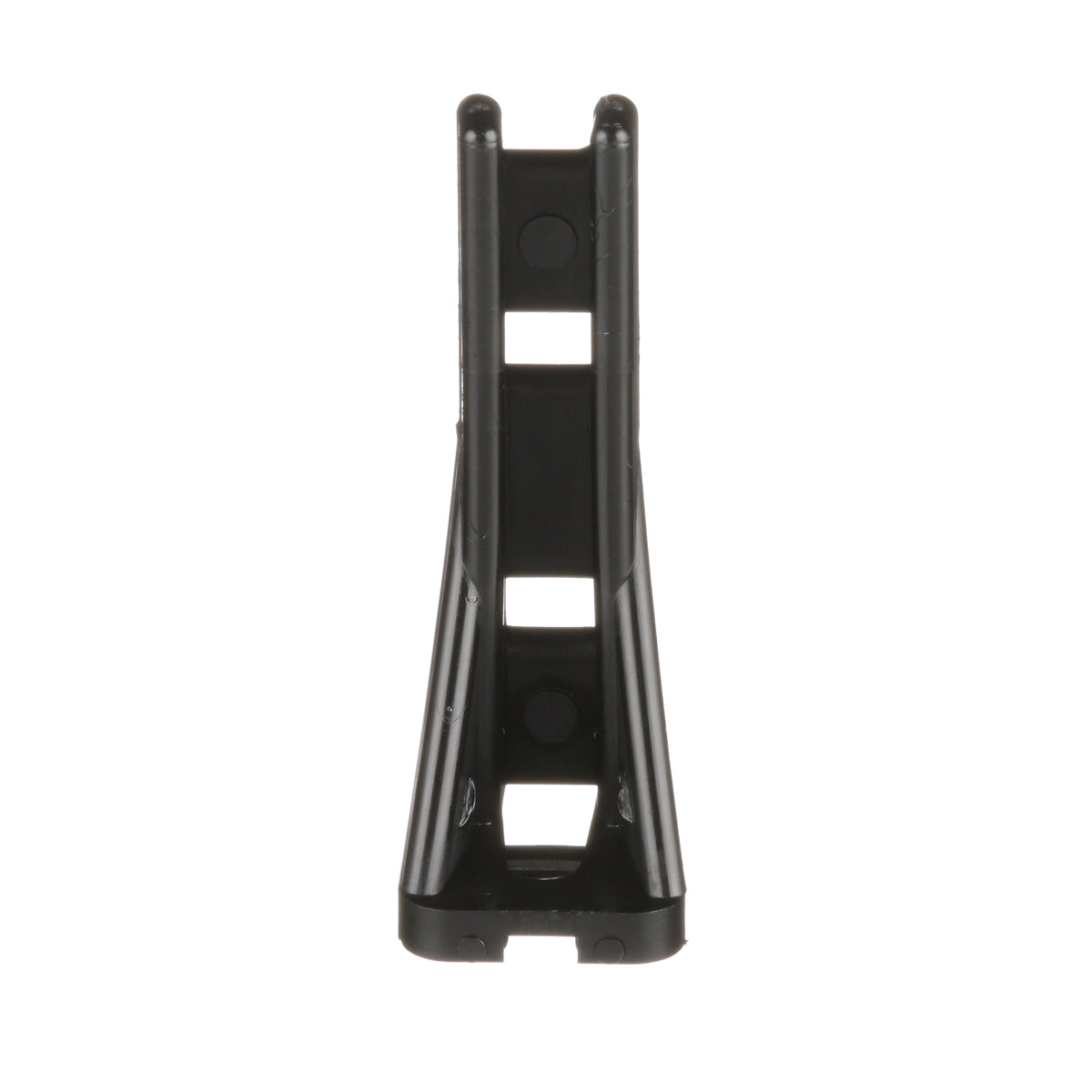

Panduit RAFCBI2-S6-M20 | Right Angle Flat Cable Mount Base
Description
Description
Panduit Right Angle Base, Threaded Mount, 2 in Maximum Tie Width, 2.78 in Base Length, 0.63 in Base Width, Nylon 6.6, Black
Designed for indoor use, the right angle flat cable mount base organizes your workspace to make it neater and more efficient. Made from Nylon 6.6, it's designed for durability.
Panduit RAFCBI2-S6-M20 Right Angle Base Mounts support cables above the mounting surface. Mounts are 2.78 (70.6mm) in height and accept flat cables up to 2.0" (50.8 mm) in width. For use in indoor environments and with #6 (M3) screws. Made of Nylon 6.6 are black in color and come in packages of 1000.
Panduit - RAFCBI2-S6-M20 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: Accepts a Flat Cable Width of 2.0" (50.8 mm)
- Supports cable above the mounting surface
Specifications
Specifications
Panduit - RAFCBI2-S6-M20 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | UL Listed: E136577; ; CE Compliant; RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | Accepts a Flat Cable Width of 2.0" (50.8 mm) |
| Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| For Use With | Flat Cable |
| Mount Method | Cable Tie, Screw |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Overall Height (In.) | 2.78 |
| Overall Height (mm) | 70.6 |
| Flat Cable Width (In.) | 2 |
| Screw Size | #6 (M3) |
| Standards Met | UL Listed: E136577; ; CE Compliant; RoHS Compliant |
| UPC | 07498358955 |
Panduit - RAFCBI2-S6-M20 - Package Information
| UPC | 07498358955 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.5550 |
| Standard Ctn. Quantity | 4000 |
| Standard Ctn. Volume (cf) | 2.2201 |
