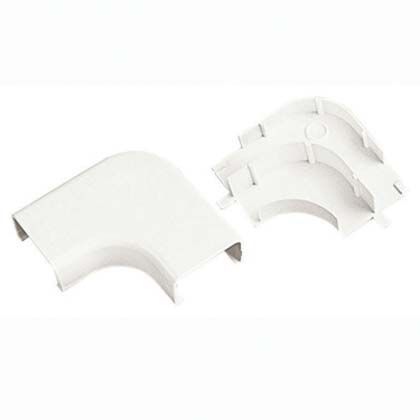

Panduit RAFX10IW-X | Surface Raceway, LDPH10 Power Rated Right Angle, Off White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RAFX10IW-X | Surface Raceway, LDPH10 Power Rated Right Angl...
Description
Description
Our snap-on right angle fitting effortlessly navigates corners in surface raceways. It provides an efficient and organized cable management solution, ideal for power and data cabling along walls.
Right angle fitting for use with LDPH10 and LD2P10 raceway, Off White, ABS, Length 3.18 in.
Panduit Pan-Way Right Angle Fitting, Power Rated, 90 deg Angle, Snap-On Mounting, For Use With: Pan-Way LDPH10 and LD2P10 Series Surface Raceway System, ABS, Off-White, 3.18 in L x 1.62 in W x 0.93 in H Dimensions
Panduit - RAFX10IW-X - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance
- 1-piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool free installation and works well for temporary mounting
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Designed to provide solutions for routing both power and data cabling along perimeter walls
- Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - RAFX10IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RAFX10IW-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Right Angle |
| For Use With | LDPH10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Length (In.) | 3.18 |
| Overall Length (mm) | 80.8 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| UPC | 07498353079 |
Panduit - RAFX10IW-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - RAFX10IW-X - Videos
| Panduit RAFX10IW-X Video 1 | Click to View |
|---|
